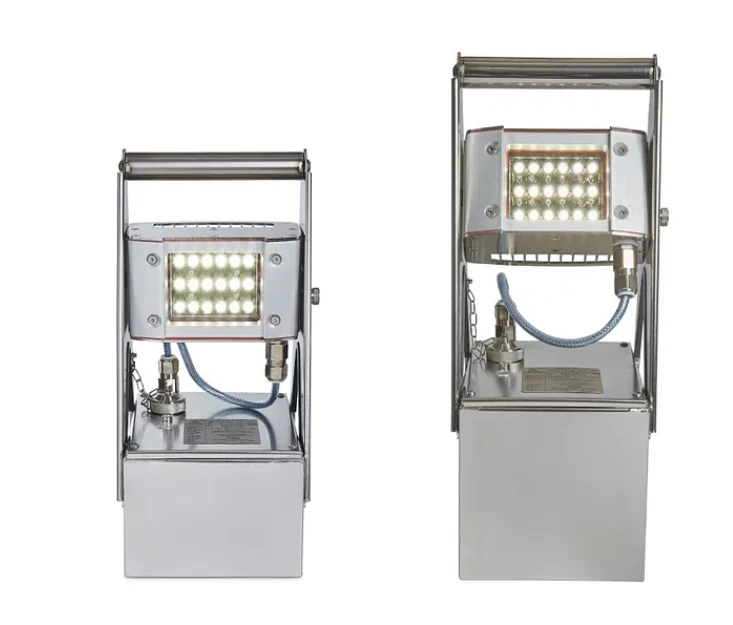

ATEX/IECEx LED WORKLITE™
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
The ATEX, IECEx and UKEX certified Worklite™ is a rechargeable, high output LED floodlight for use in harsh, remote applications for extended periods. It offers unique levels of light output, operational duration and robustness in a self-contained battery powered lamp. It is CE marked to the ATEX Directive for safe use in Zones 1, 2, 21 and 22 potentially explosive gas, vapour, mist and dust atmospheres, where a T4 temperature class permits.
Specifications
| Product Reference | WL-80 | WL-85 | |
| Product Description | High Power Rechargeable Battery Worklite™ 18 LED | ||
| Code | II 2 GD Ex e ib IIC T4 Gb Ex tb IIIC T135°C Db | ||
| Type of Protection | ‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tb Enclosure Protection | ||
| Area of Classification (Gas) | Zones 1 and 2, Gas Groups IIA, IIB, IIC | ||
| Temp. Classification (Gas) | T4 | ||
| Area of Classification (Dust) | Zones 21 and 22, Dust Groups IIIA, IIIB, IIIC | ||
| Max Surface Temp. (Dust) | T135°C | ||
| Ambient Temperature | -20°C to +40°C | ||
| Certificate | CML 18ATEX3373X, IECEx CML 18.0199X, CML 21UKEX3646X | ||
| Enclosure | Stainless Steel with Aluminium LED Lamp Head | ||
| Lens | Toughened Glass Lens Supplied with 3 Anti-static Lens Guards | ||
| Beam Type | Spot Beam with a Flood of Low Level Fringe Light | ||
| Light Source: | Type | High Power LED | |
| Light Source: | Power / Output | 18 x High Power LEDs / Up to 3100 lm at source | |
| Light Source: | Life | 100,000hrs+ (Fitted for Life) | |
| Power Source: | Part No. | W-218 | W-235 |
| Power Source: | Battery Type | Rechargeable Battery, Sealed Gel Lead Acid | |
| Power Source: | Volts | 12V | |
| Power Source: | Capacity | 18Ah | 35Ah |
| Power Source: | Life | Up to 500 Recharge Cycles | |
| Low Battery Indicator | Yes | ||
| Light Duration - High / Low | Up to 15hrs / 22hrs | Up to 21 hrs / 40hrs | |
| Ingress Protection | IP66 and IP67* to IEC60529 | ||
| Weight (inc. battery) | 16.5kg | 23kg | |
| Charger Input | 100 - 254 Vac | ||
| Recharge Time | 8hrs | 12hrs |
