ATEX TURBOLITE
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia

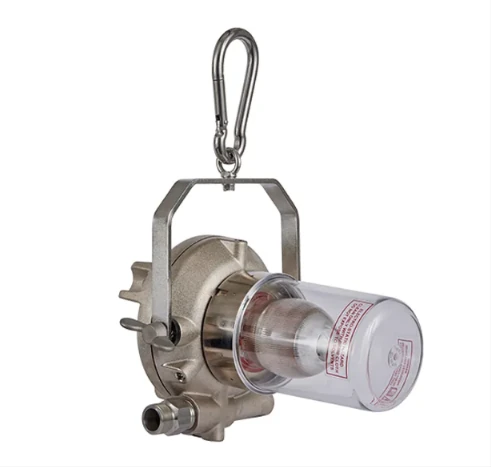

The NEW UPDATED ATEX, IECEx and UKEX certified ATEX Turbolite is a highpowered compressed air driven lamp for use in potentially explosive atmospheres and meets EN IEC 60079-0:2018 and EN 60079-33:2014 ‘explosion prevention and protection’ in Europe, offering a safe, effective and efficient alternative to mains and low powered lighting solutions.
Specifications
| Product Reference | A-TL44C | A-TL45C |
| Product Description | Compressed Air Powered Baylight and Floodlight | |
| Code | II 2 G D Ex sb IIC T4 Gb Ex sb IIIC T135°C Db | |
| Apparatus Standards | EN IEC 60079-0:2018 and EN 60079-33:2014 | |
| Type of Protection | Ex sb | |
| Area of Classification (Gas) | Zones 1 and 2, Gas Groups IIA, IIB, IIC | |
| Temp. Classification | T4 | |
| Ambient Temperature | -15°C to +55°C | -20°C to +55°C |
| Certificate | CML 22ATEX9542X CML 22UKEX9543X IECEx CML 22.0083X | |
| Enclosure | Aluminium | |
| Lens | Ball glass and plastic protective dome | Toughened Glass (10mm) |
| Beam Type | All-around 360° Illumination | Flood |
| Light Source: | Part Code | A-129 (6000 lumen standard bulb) A-159 (9000 lumen high output bulb) can be ordered as an alternative |
| Light Source: | Type | Halogen Filled Filament Bulb |
| Light Source: | Volts | 24v |
| Light Source: | Watts | 250w |
| Light Source: | Output | 6000 lm / 9000 lm |
| Light Source: | Life | 2000 hrs / 200 hrs |
| Power Source: | Type | Compressed Air Driven Turbo-alternator |
| Power Source: | Air Pressure | 5.0-8.0 bar |
| Power Source: | Consumption | 0.75m³/min |
| Ingress Protection | IP66 (when running) Once pressurised may be used underwater. When using under water, always start the lamp before submerging and ensure lamp is running until removed from water, an additional accessory must be fitted allow an exhaust hose to be fitted to either have the exhaust air away from the lamps or piped to the surface. Depth of use limitations to be considered regarding water pressure. | |
| Weight | 4.4 kg | 5.3 kg |
