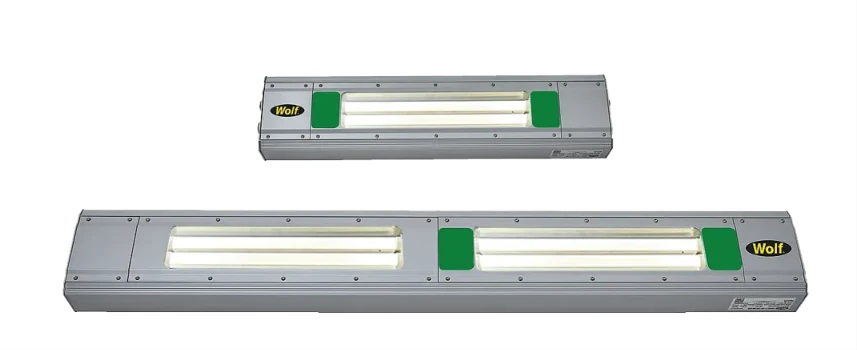

LMXE EMERGENCY LINEAR DLO
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
The LMXE DLO (Directional Linear Optics) Intelligent Emergency range is ATEX, IECEx and UKEX certified for safe use in Zone 1,2 and 21,22 potentially explosive atmospheres. It has all the features of the LMX DLO Linear standard luminaire, with the additional safety of a battery powered emergency back-up supply should power fail in the Hazardous Area.
Specifications
| Product Reference | LMX2E-L-60 | LMX4E-L-60 | LMX4EE-L-60 |
| Code | II 2 G Ex eb mb IIC T4 Gb II 2 D Ex tb IIIC T90°C Db | ||
| Certificate | ExVeritas 19 ATEX 0433X IECEx EXV 19.0001X ExVeritas 21 UKEX 0946X | ||
| Input Voltage Range | 100-140V AC; 200-277V AC | ||
| Input Power (230V) | 32W | 56W | 64W |
| Frequency | 50 - 60 Hz | ||
| Power Factor | >0.90 | ||
| Enclosure Size | 2ft | 4ft | |
| Lumen Output (Max)* | 1,988 | 3,976 | |
| LED Module & Quantity | 1x Emergency DLO | 1x Emergency DLO and 1x DLO | 2x Emergency DLO |
| Beam Angles | 90° (110° upon request) | ||
| Ingress Protection | IP66/IP67 (depending on gland fitted) | ||
| Gas Temp. Class | T4 | ||
| Weight | 6.5kg | 10.5kg | 12kg |
| Dust Surface Temp. | T90°C | ||
| Lower Temp. Limit | -40 °C | ||
| Upper Temp. Limit | 60 °C | ||
| Colour Temperature | 5000K |
