LHX1 HIGHBAY
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

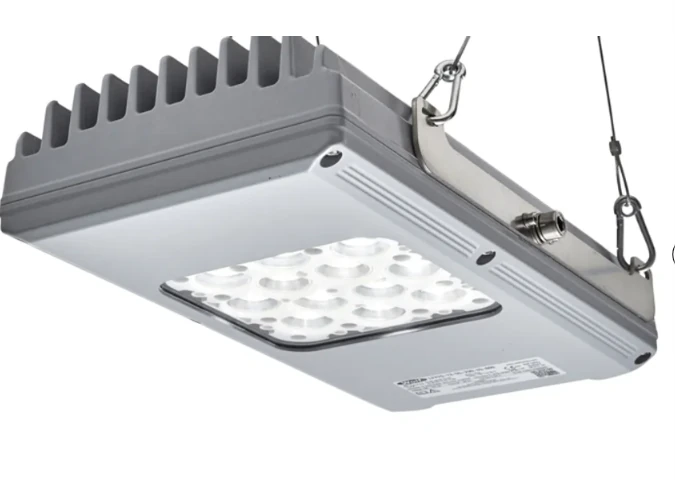

The LHX1 Installed LED Highbay is ideal for use in very high and large hazardous work areas. ATEX, IECEx and UKEX certified to Zones 1 and 21, these high powered, ceiling mounted lamps have a lumen output of up to 12,996 lumens and are IP66/67 rated making them perfect for both indoor and outdoor use. 2 versions available, 12 or 16 LED configurations.
Specifications
| Product Reference | LHX1S -12-55 | LHX1S -12-65 | LHX1S -16-45 | LHX1S -16-55 |
| Code | II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T110 °C Db | |||
| Certification | ExVeritas 19 ATEX 0586X IECEx EXV 19.0079X ExVeritas 21 UKEX 0939X | |||
| Input Voltage Range | 88 - 140 AC; 180 - 277 VAC | |||
| Input Power | 67.5W | 45W | 90W | 60W |
| Frequency | 50 - 60 Hz | |||
| Power Factor | >0.90 | >0.95 | ||
| Enclosure Size | Small | |||
| Lumen Output (Max)* | 9,724 | 6,483 | 12,996 | 8,644 |
| LEDs | 12 LED | 12 LED | 16 LED | 16 LED |
| Beam Angles | Narrow (36°), Medium (45°), Wide (62°), Ultra Wide (102°) | |||
| Ingress Protection | IP66/IP67*** | |||
| Gas Temp. Class | T4 | |||
| Weight | 9.5kg | |||
| Dust Surface Temp. | 110°C | |||
| Lower Temp. Limit | -50°C | |||
| Upper Temp. Limit | 55°C | 65°C | 45°C | 55°C |
| Colour Temperature | 5000K |
