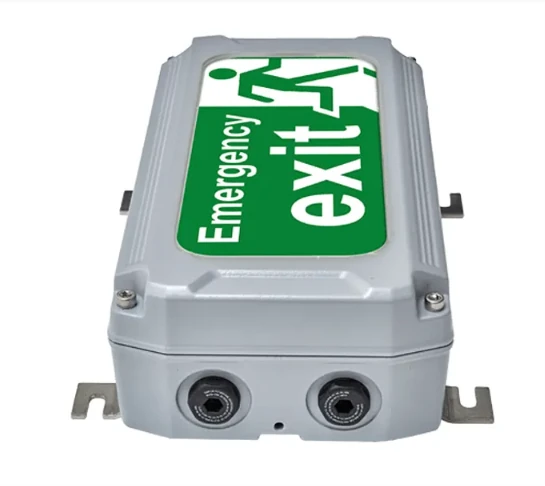

LBXE EMERGENCY BULKHEAD
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
The LBXE LED Emergeny Bulkhead is a compact, versatile and robust light which is ideal to safely illuminate key walkways, steps and entrances within Hazardous Areas. It will switch to emergency battery power should the mains supply fail.
Specifications
| Product Reference | LBXE-L-59 | LBXN-L-59 |
| Code | II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T80°C Db | |
| Certificate | ExVeritas 19 ATEX 0439X / IECEx EXV 19.0002X / ExVeritas 21 UKEX 0945X | |
| Input Voltage Range | 100-140V AC; 200-277V AC | |
| Input Power | 32W | 6W |
| Frequency | 50 - 60 Hz | |
| Power Factor | >0.90 | |
| Lumen Output (Max)* | 1,629 | |
| LED Module & QTY | 1x DLO | |
| Beam Angles | 90° (110° upon request) | |
| Ingress Protection | IP66/IP67 (depending on gland fitted) | |
| Gas Temp. Class | T4 | |
| Weight | 5.5kg | |
| Dust Surface Temp. | T80 °C | |
| Lower Temp. Limit | -40°C | |
| Upper Temp. Limit | 59 °C | |
| Colour Temperature | 5000K |
