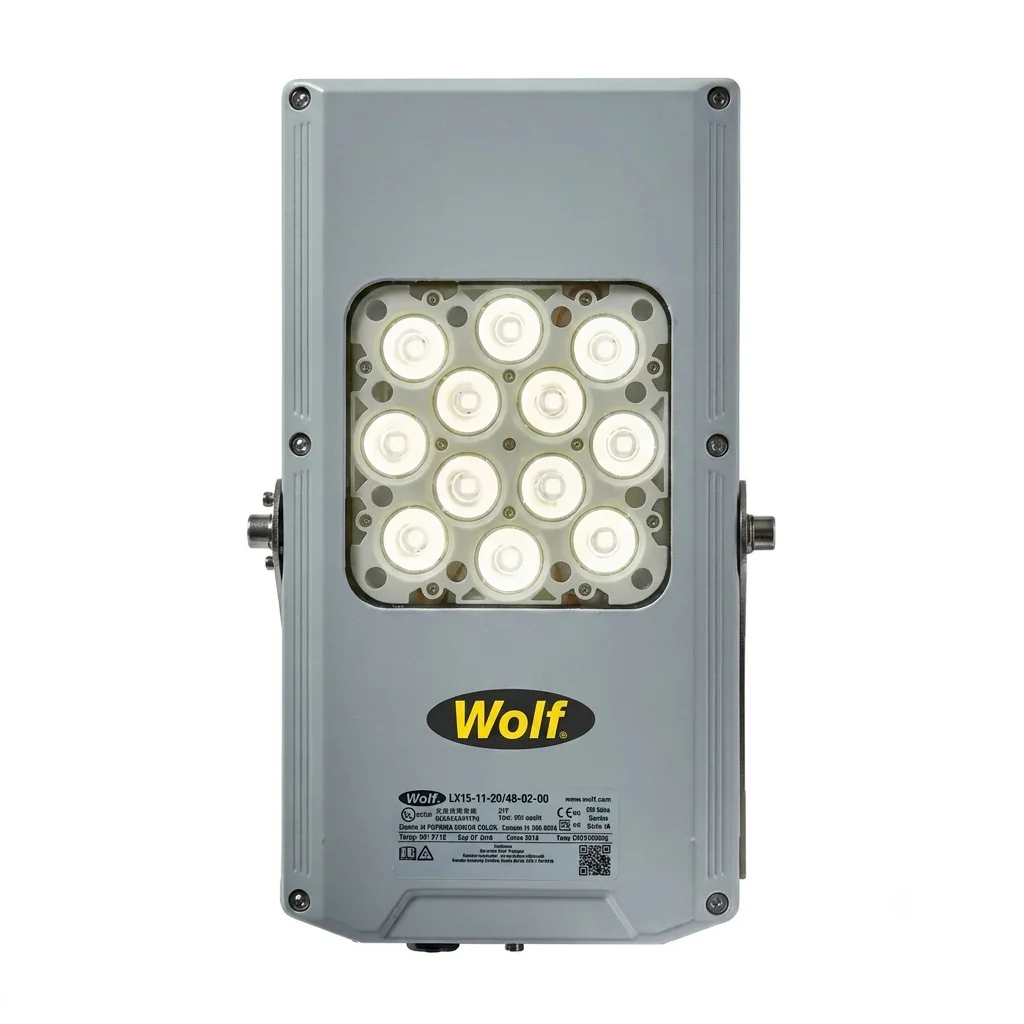

LFX1 FLOODLITE
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
The LFX1 Floodlite™ is ideal for safely illuminating medium to large sized Hazardous Areas that need wide, even, light coverage. ATEX, IECEx and UKEX certified for Zones 1,2 and 21,22, the LFX1 is available with either 12 or 16 LEDs. IP66/67 certified and with a full range of fixing accessories, the LFX1 Floodlite™ is ideal for safe use in both indoor and outdoor potentially explosive atmospheres.
Specifications
| Product Reference | LFX1S-12-55 | LFX1S-12-65 | LFX1S-16-45 | LFX1S-16-55 |
| Code | II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T110 °C Db | |||
| Certification | ExVeritas 19 ATEX 0586X IECEx EXV 19.0079X ExVeritas 21 UKEX 0939X | |||
| Input Voltage Range | 88 - 140V AC; 180 - 277 VAC | |||
| Input Power | 67.5W | 45W | 90W | 60W |
| Frequency | 50 - 60 Hz | |||
| Power Factor | >0.90 | >0.90 | >0.95 | >0.95 |
| Enclosure Size | Small | |||
| Lumen Output (Max)* | 9,724 | 6,483 | 12,996 | 8,644 |
| LEDs | 12 LED | 12 LED | 16 LED | 16 LED |
| Beam Angles | Narrow (36°), Medium (45°), Wide (62°), Ultra Wide (102°) | |||
| Ingress Protection | IP66/IP67*** | |||
| Gas Temp. Class | T4 | |||
| Weight | 9.5kg | |||
| Colour Temperature | 5000K |
