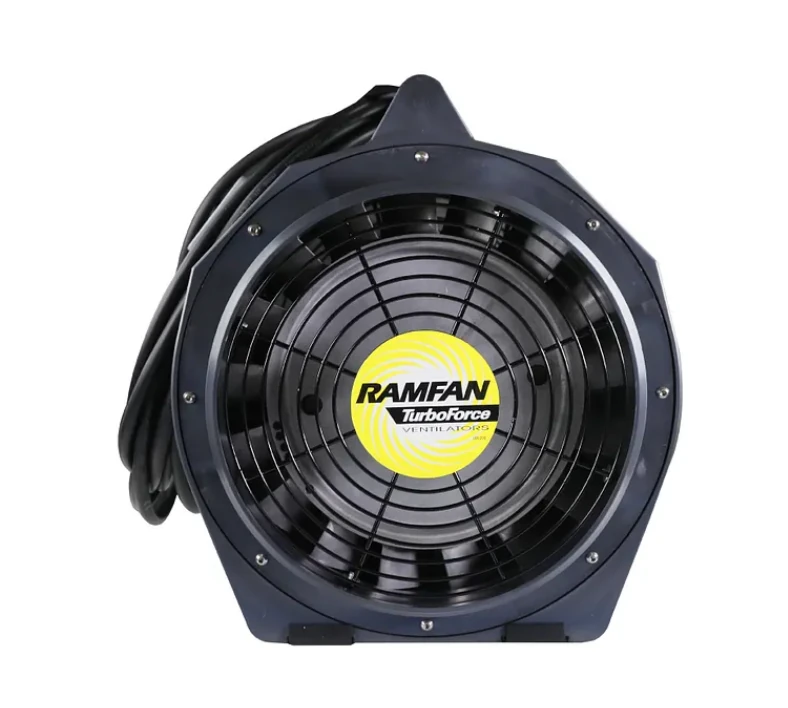

30cm FAN/VENTILATOR
Made in United Kingdom
Contact for pricing
The Ramfan VF-EFi75xx ATEX certified hazardous area blower delivers up to 2,500 cfm (4,250m³/hr) and is available as 115V or 230V.
Specifications
| Product Reference | VF-EFi75xx (115V) | VF-EFi75xx (230V) |
| Product Description | 30cm Hazardous Area Fan / Ventilator | |
| Code | II 2 G Ex db eb IIB T6 Gb II 2 G Ex h IIB T6 Gb | |
| Type of Protection | 'db' flameproof enclosures 'eb' increased safety 'h' non-electrical equipment | |
| Area of Class (Gas) | Zones 1 and 2, Gas Groups IIA and IIB | |
| Max Surface Temp (Gas) | T6 | |
| Ambient Temp. (Gas) | -20°C TO +40°C | |
| Certificate | DEMKO 09 ATEX 0926969X IECEx UL 13.0062X | |
| Enclosure | Anti-static PolycarbonateABS Alloy | |
| Motor | 0.75 Hp (0.56 kW) | |
| Voltage | 115V 50/60Hz | 230V 50/60Hz |
| Amps: Start | 37A | 27A |
| Amps: Run | 8.8A | 4.4A |
| Free Air Through Duct | 2,500 cfm (4,250 m³/hr) | |
| 15'/4.6m /w one 90° turn: | 1,664 cfm (2,829 m³/hr) | |
| 15'/4.6m /w two 90° turn: | 1,529 cfm (2,599 m³/hr) | |
| Ingress Protection | IP55 | |
| Dimensions (h/w/d) | 41 x 38 x 41 cm | |
| Weight | 20kg | |
| Duct Adapters | 2 | |
| Noise | 89db @ 1m |
