20cm FAN/VENTILATOR
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia

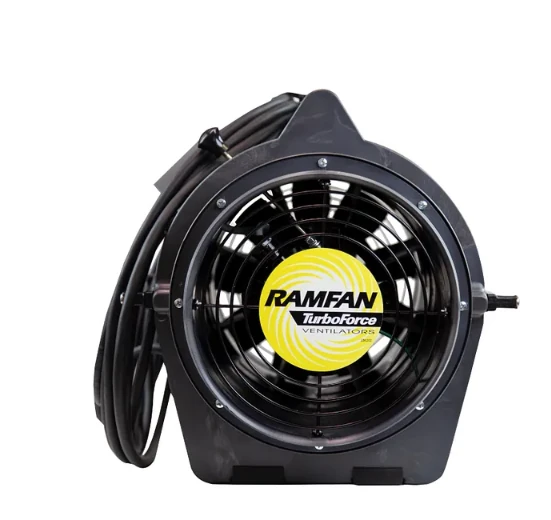

The Ramfan VF-UB20xx is an ATEX certified hazardous area blower with a totally enclosed motor which is safe for use in a variety of potentially explosive atmospheres.
Specifications
| Product Reference | VF-UB20xx (115V) | VF-UB20xx (230V) |
| Product Description | 20cm Hazardous Area Fan / Ventilator | |
| Code | II 2 G Ex db eb IIB T6 Gb II 2 G Ex h IIB T6 Gb | |
| Type of Protection | 'd' flameproof 'e' increased safety 'h' non-electrical equipment | |
| Area of Class (Gas) | Zones 1 and 2, Gas Groups IIA and IIB | |
| Max Surface Temp (Gas) | T6 | |
| Ambient Temp. (Gas) | -20°C TO +40°C | |
| Certificate | DEMKO 09 ATEX 0926969X IECEx UL 13.0062X | |
| Enclosure | Anti-static PolycarbonateABS Alloy | |
| Motor | 0.33 Hp (0.25kW) | |
| Voltage | 115V 50/60Hz | 230V 50/60Hz |
| Amps (Start/run) | 7A / 2.3A | 7A / 1.2A |
| Airflow | ||
| Free Air Through Duct | 980 cfm (1,666m³/hr) | 816 cfm (1,386m³/hr) |
| 15'/4.6m /w one 90° turn: | 789 cfm (1,341m³/hr) | 659 cfm (1,120m³/hr) |
| 15'/4.6m /w two 90° turn: | 666 cfm (1,132m³/hr) | 558 cfm (948m³/hr) |
| 25'/7.6m /w one 90° turn: | 722 cfm (1,227m³/hr) | 603 cfm (1,025m³/hr) |
| 25'/7.6m /w two 90° turn: | 614 cfm (1,044m³/hr) | 510 cfm (867m³/hr) |
| Ingress Protection | IP55 | |
| Dimensions (h/w/d) | 35 x 35 x 39 cm | |
| Weight | 12kg | |
| Duct Adapters | 2 | |
| Noise | 74db @ 1m |
