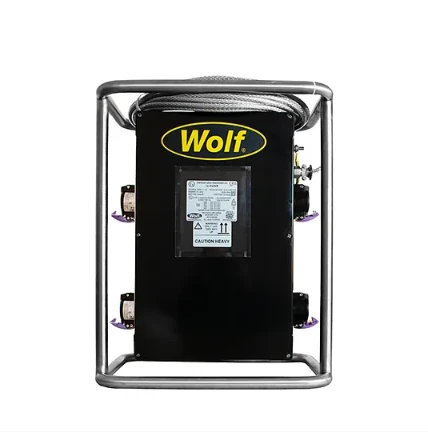

24V TRANSFORMERS
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
Wolf ATEX Transformers are CE marked and certified for safe use in Zones 1 and 2 potentially explosive gas atmospheres, as well as Zones 21 and 22 potentially explosive dust environments, provided the T-class and ambient temperature conditions are met.
Specifications
| Model | LL-114/T4/W | LL-214/T4/W |
| Voltage | 110V:24V | 230V:24V |
| Code | II 2 GD Ex eb db IIC T4 Gb Ex tb IIIC T100°C Db IP66 | |
| Temperature Class (Gas) | T4 | |
| Maximum Power / Ambient Temperature | 400VA: T AMB = -20°C MIN AND +30°C MAX 340VA: T AMB = -20°C MIN AND +44°C MAX 320VA: T AMB = -20°C MIN AND +48°C MAX 310VA: T AMB = -20°C MIN AND +50°C MAX 280VA: T AMB = -20°C MIN AND +55°C MAX | |
| Max. Surface Temperature (Dust) | 100°C | |
| Certificate Number | ATEX - ExVeritas 25 ATEX 2069X IECEx - IECEx ExV 25.0018X | |
| Type of Protection | ‘e’ increased safety, ‘d’ flameproof, 't' enclosure | |
| Area of Classification (Gas) | Zones 1 and 2, Gas groups IIA, IIB and IIC | |
| Area of Classification (Dust) | Zones 21 and 22, Dust Groups IIIA, IIIB and IIIC | |
| Enclosure | Glass reinforced polyester (GRP) enclosure, marine grade (316L) Stainless Steel skid | |
| Input Voltage | 110V AC +/- 15V 50-60Hz | 230V AC +/- 15V 50-60Hz |
| Input Cable | 15m SY cable 2.5 mm² | |
| Input Plug | 110V ATX 2P+E plug fitted as standard | 230V ATX 2P+E plug fitted as standard |
| Socket Arrangement & Configuration | 4 output sockets ATX 24V 2P+E as standard | |
| 2 sockets on each side | ||
| Dimensions | 605 mm x 485 mm x 310 mm | |
| Ingress Protection | IP66 | |
| Approximate Weight | ≈25 kg (without cable) |
