MARKERLITE
Made in United Kingdom
Contact for pricing

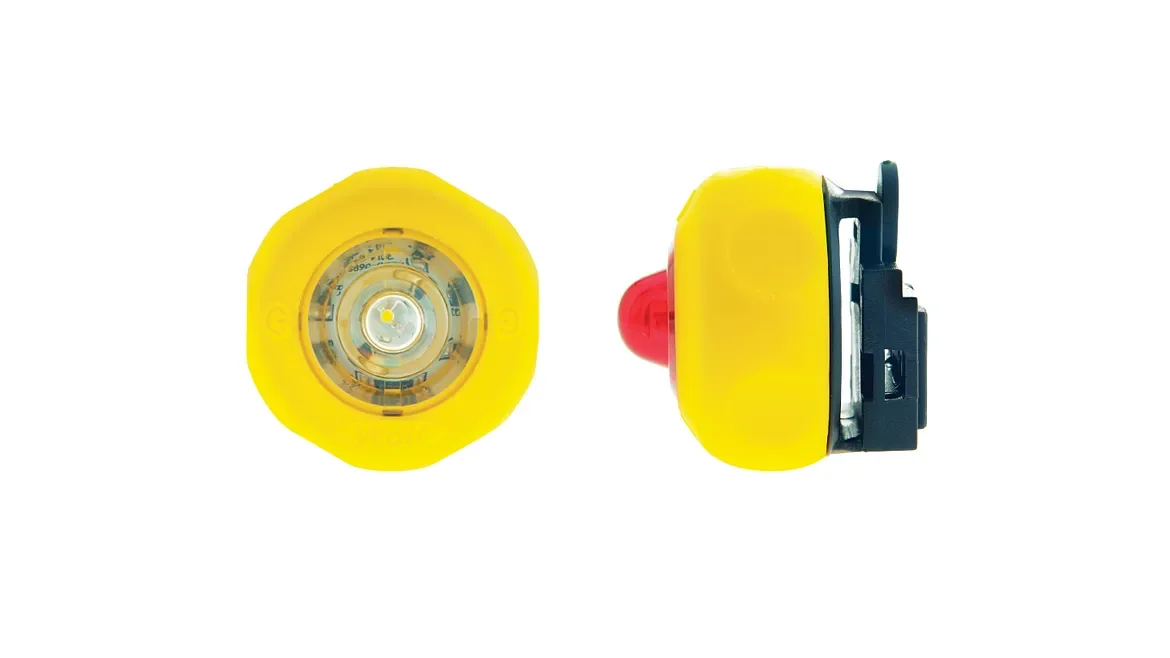

The Wolf Markerlite is a self-contained, high visibility led indicator which is CE marked to the ATEX directive and IECEx certified for safe use in potentially explosive zone 1 (IIC/T4) gas and zone 21 (IIIB/200°c) dust atmospheres.
Specifications
| Product Reference | ML-15W | ML-15A | ML-15R | |
| Product Description | White | Amber | Red | |
| Code (Industrial) | II 2 GD Ex ib IIC T4 Gb (Tamb -40°C to +55°C) IP67 Ex ib IIIB T200°C Db | |||
| Type of Protection | ‘ib’ intrinsic safety | |||
| Area of Classification (Gas) | Zones 1 and 2 Gas Groups IIA, IIB & IIC | |||
| Temp. Classification (Gas) | T4 | |||
| Ambient Temperature | -40°C - +55°C | |||
| Area of Classification (Dust) | Zones 21 and 22 Dust Groups IIIA & IIIB | |||
| Max Surface Temperature (Dust) | T200°C | |||
| Certification | ATEX - Baseefa14ATEX0203 IECEx - IECEx BAS 14.0095 | |||
| Enclosure | Polycarbonate and Thermoplastic Elastomer | |||
| Lens | Polycarbonate | |||
| Beam Type | Wide Angle (180°) | |||
| Light | High Output LED | |||
| Light Source | Type | LED White | LED Amber | LED Red |
| Output | 4.7 lumens | |||
| Life | 25,000 hrs | |||
| Power Source | Type | CR2032 Lithium Button Cells with a minimum separation of 0.9mm between central negative (-) pad and outer edge of cell | ||
| Volts | 2 x 3V | |||
| Light Duration | 65 hrs (flashing) & 25 hrs (static) | |||
| Ingress Protection | IP67 | |||
| Weight (incl. cells) | 23 grams |
