MINIS AND MICRO
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia

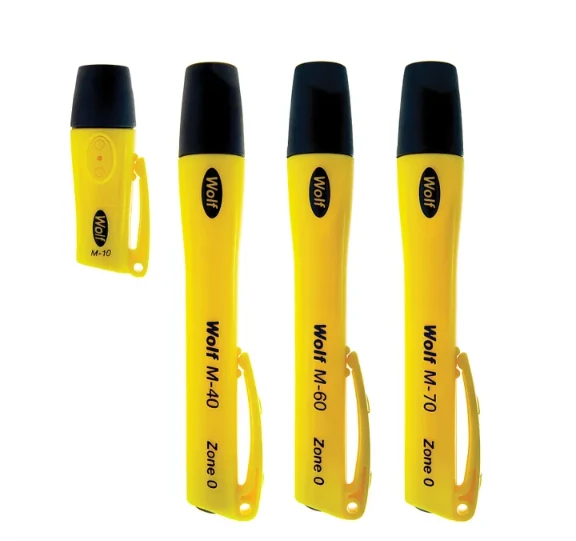

Wolf Mini and Micro torches are tough, reliable and compact enough to easily store in your pocket. Using the latest LED light source technology, light output is highly impressive, with the new M-70 Mini torch achieving up to 107 lumens (at source) from its 2 X AAA batteries. ATEX, IECEx and UKEX certified for safe use in potentially explosive gas, vapour, mist or dust atmospheres where a T4 or T5 temperature class permits, all models are approved to Group I for use in mining applications.
Specifications
| Product Reference | M-10 | M-40 | M-60 | M-70 | |
| Product Description | LED Micro Torch | LED Mini Torch | |||
| Code | ATEX | I M1/II 1G2D | I M1/II 1G2D | I M1/II 1G2D | I M1/II 1GD |
| Code | GAS | Ex ia IIC T5 Ga | Ex ia IIC T4 Ga | Ex ia IIC T4 Gb | Ex ia IIC T4 Ga |
| Code | DUST | Ex ib IIIB T95°C Db | Ex ib IIIB T125°C Db | Ex ib IIIB T130°C Db | Ex ia IIIC T 200 160°C Da |
| Code | MINING | Ex ia I Ma | Ex ia I Ma | Ex ia I Ma | Ex ia I Ma |
| Type of Protection | ia / ib | ||||
| Area of Class (Gas) | Zones 0, 1 & 2, Gas group IIC | ||||
| Temp. Class (Gas) | T5 | T4 | |||
| Ambient Temp. | -40°C to + 50°C | -20°C to +40°C | |||
| Area of Class (Dust) | Zones 21 & 22, Dust Group IIIB | Zones 20, 21 & 22, Dust Group IIIC | |||
| Max Surface Temp. (Dust) | 95°C | 125°C | 130°C | 160°C | |
| Certification | Baseefa06ATEX084 / IECEx BAS 06.0023 / BAS21UKEX0435 | ||||
| Enclosure / Lens | Impact Resistant Thermoplastic with a polycarbonate lens | ||||
| Enclosure / Lens | |||||
| Enclosure / Lens | |||||
| Enclosure / Lens | |||||
| Enclosure / Lens | |||||
| Enclosure / Lens | |||||
| Beam Type | Medium Spot | ||||
| Beam Type | |||||
| Beam Type | |||||
| Light Source | Type | 1x5mm LED White (Nichia) | 3 x 5mm LED White (Nichia) | 1 x High Power Cree LED | |
| Light Source | Output (at source) | 30 cd | 3 x 30 cd | Up to 139 lm | Up to 107 lm |
| Light Source | Life | 25,000 hrs | |||
| Power Source | Part No. | M-102 (4 pack) | M-402 (3 pack) | M-202 (2 pack) | |
| Power Source | Type | LR44 Primary Cells to IEC60086 | LR1 Primary Cells to IEC60086 | LR03 Primary Cells to IEC60086 | |
| Power Source | Volts | 4 x 1.5V | 3 x 1.5V | 2 x 1.5V | |
| Light Duration | Up to 2 hrs | Up to 10 hrs | Up to 3 hrs | Up to 7 hrs | |
| Ingress Protection | IP67 | ||||
| Weight (Incl. Cells) | 25g | 60g | 50g |
