WAL AREA LIGHT
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia

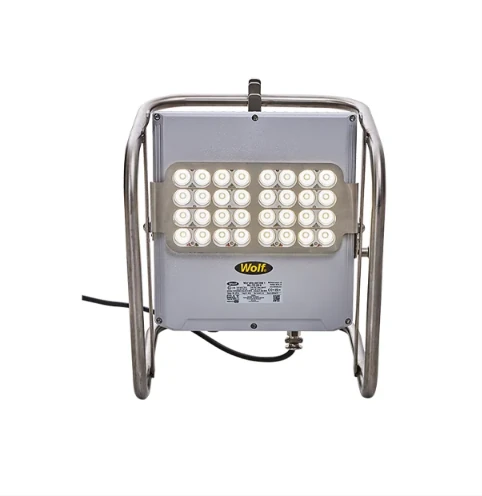

The WAL Area Light is a high-powered, fully portable Hazardous Area LED area light. Ideal for safely illuminating large Hazardous Areas that need wide, even light coverage, it is ATEX and IECEx certified for safe use in Zones 1, 2 and 21, 22 potentially explosive atmospheres. It delivers up to 30,944 lumens at source from its innovative and patented light engine. Built for demanding environments, its marine-grade aluminium enclosure is rated IP66 and IP67, ensuring reliable performance indoors and outdoors.
Specifications
| Product Reference | WAL-725-110-8 | WAL-725-230-8 |
| Product Description | LED Area Light | |
| Product Description | ||
| Code | II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T110°C Db | |
| Certificate | ExVeritas 19 ATEX 0586X IECEx EXV 19.0079X ExVertias 21 UKEX 0939X | |
| Input Voltage Range | 88 - 140V AC | 180 - 277V AC |
| Input Power | 180W | |
| Frequency | 50 - 60 Hz | |
| Power Factor | >0.90 | |
| Enclosure | Marine grade aluminium alloy, epoxy powder coated | |
| Lumen Output (MAX)* | 30,944 lumens (at source)* | |
| LEDs | 32 LED | |
| Beam Angle | Flood (62°) | |
| Ingress Protection | IP66/67 | |
| Lower Temp. Limit | -50°C | |
| Upper Temp. Limit | +50°C | +49°C |
| Weight | 20.2kg (excluding cable) | |
| Colour Temperature | 5000K | |
| Cable/Plug | 5m H07RN-F (2.5mm² ) plus ATX plug as standard (others available on request) | |
| Accessories | Scaffold Mounting Clamp |
