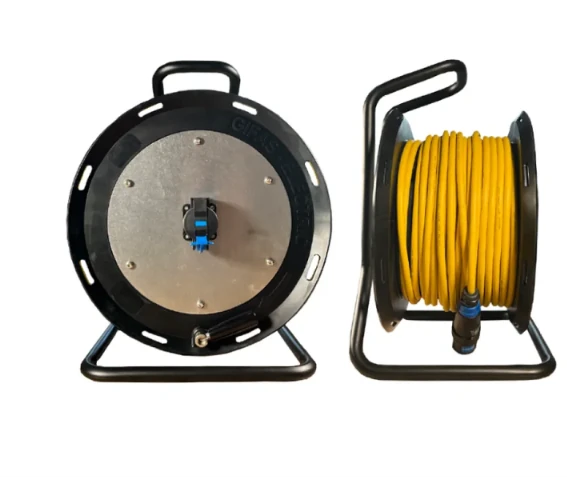

ATEX CABLE REEL
Made in United Kingdom
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
Used together with our Hazardous Area range of temporary lighting and our other temporary power distribution products, our ATEX cable reels, which are marked to the 2014/34/EU ATEX quipment directive for safe use in Zone 1 (Cat 2) IIC where a T6 temperature class permits, help provide flexible hazardous area lighting solutions.
Specifications
| MODEL | ATEX CABLE REEL LL-300/110/XXX | |
| PRODUCT DESCRIPTION | ATEX Cable Reel | |
| CODE | II 2 G Ex de ICC* T6 | |
| TYPE OF PROTECTION | "e" increased safety "d" flameproof | |
| CLASSIFICATION (GAS) | Zones 1 & 2 Gas Groups IIA, IIB IIC* | |
| TEMPERATURE CLASS (GAS) | T6 | |
| AMBIENT TEMPERATURE | -20°C to +40°C | |
| CERTIFICATE | PTB03ATEX1186 | |
| MODEL NUMBER | LL-300/110/ATX | LL-300/110/CEAG |
| VOLTAGE AND SOCKETS / PLUGS | 110V | |
| VOLTAGE AND SOCKETS / PLUGS | ATX | CEAG |
| INPUT CABLE | 30m HOFR cable 2.5mm2 | |
| SIZE | 412mm x 314mm x 319mm (Height x Width x Length) | |
| WEIGHT | 11.9Kg (with 30m cable) | 12Kg (with 30m cable) |
| INGRESS PROTECTION | IP54 | |
| POWER RATING | 110V 450W (wound) / 1700W (unwound) |
