STROVOLT DIN/BT Extended Pull Stud for Morse Taper with Thread BT50-45°-M20 · STV-MT-40005-7-BT50-45-M20

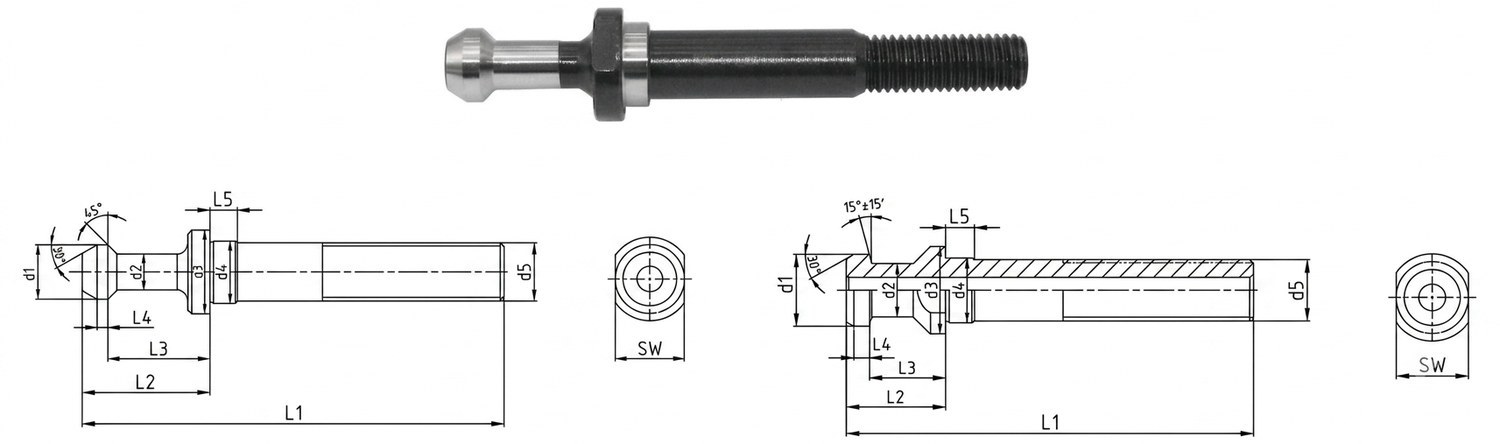

The STROVOLT DIN/BT Extended Pull Stud for Morse Taper with Thread (STV-MT-40005-7-BT50-45-M20) is a precision-made machine-tool accessory in hardened & precision-ground alloy steel, engineered for correct assembly and secure clamping of collet chuck systems. Key specification: Model BT50-45°-M20, d1 (mm) 23, d2 (mm) 17, d3 (mm) 38, d4 (mm) 25, d5 (mm) M20, L1 (mm) 151, L2 (mm) 45, L3 (mm) 35, L4 (mm) 5, L5 (mm) 8, SW (mm) 30. Used with the matching STROVOLT collet chuck systems. Part of the STROVOLT machine-tool accessories range stocked and supplied across Saudi Arabia with fast delivery to the Eastern Province and the wider GCC — order by STROVOLT part number STV-MT-40005-7-BT50-45-M20 or contact us for B2B accounts and bulk pricing.
Manufactured for STROVOLT. www.strovolt.com
