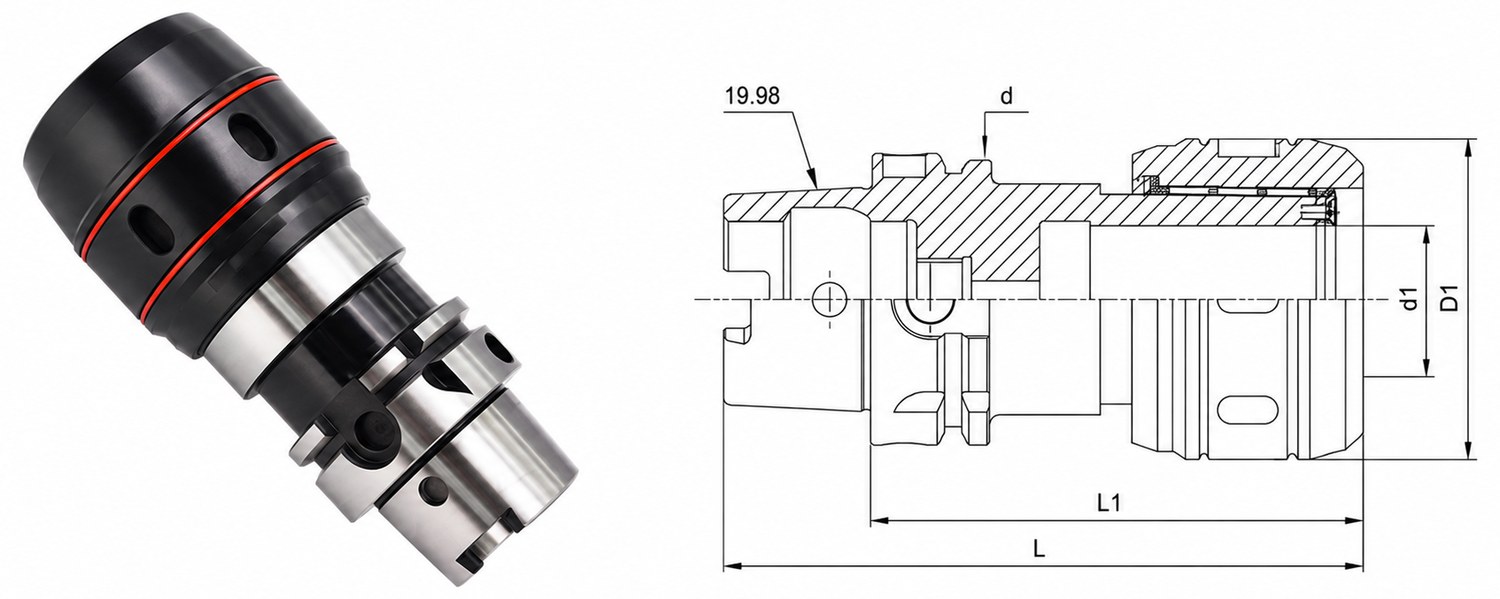

The STROVOLT HSK-A Series Power Milling Chuck (STV-MT-10019-50A-C20-120) is a precision-made machine-tool accessory in hardened & precision-ground alloy steel, engineered for rigid, accurate tool clamping on CNC machining centres and milling machines. Key specification: Model HSK50A-C20-120, L (mm) 145, L1 (mm) 120, d (mm) 20, D (mm) 50, D1 (mm) 62. Hardness: HRC58-60, carburization depth >0.8mm Six elastic holes have been machined into the inner hole of the tool holder to prevent tool rotation and increase clamping force. Used on CNC machining centres and milling machines with BT, DIN69871 (SK), HSK, CAT and DIN2080 (NT) spindles. Part of the STROVOLT machine-tool accessories range stocked and supplied across Saudi Arabia with fast delivery to the Eastern Province and the wider GCC — order by STROVOLT part number STV-MT-10019-50A-C20-120 or contact us for B2B accounts and bulk pricing.
Manufactured for STROVOLT. www.strovolt.com
Key Features
Explore the outstanding features of this product
Precision ground
Machined and ground for accuracy, rigidity and long service life.
Hardness: HRC58-60, carburization depth >0.8mm
Hardness: HRC58-60, carburization depth >0.8mm
Six elastic holes have been machined into the inner hole of the tool holder to prevent to…
Six elastic holes have been machined into the inner hole of the tool holder to prevent tool rotation and increase clamping force
Needle roller bearing cages made of special materials extend service life and enhance cla…
Needle roller bearing cages made of special materials extend service life and enhance clamping force
It has a strong clamping force and high precision at fixed points, especially suitable fo…
It has a strong clamping force and high precision at fixed points, especially suitable for strong cutting
Application
Ideal for rigid, accurate tool clamping on CNC machining centres and milling machines.
Product Applications
Discover the various ways this product can be utilized
For rigid, accurate tool clamping on CNC machining centres and milling machines.
Used on CNC machining centres and milling machines with BT, DIN69871 (SK), HSK, CAT and DIN2080 (NT) spindles.
CNC machining, aerospace, automotive and general engineering.
