RIFTEK Wedge Wire Screen Inspection Machine
Contact for pricing
Available in Saudi Arabia

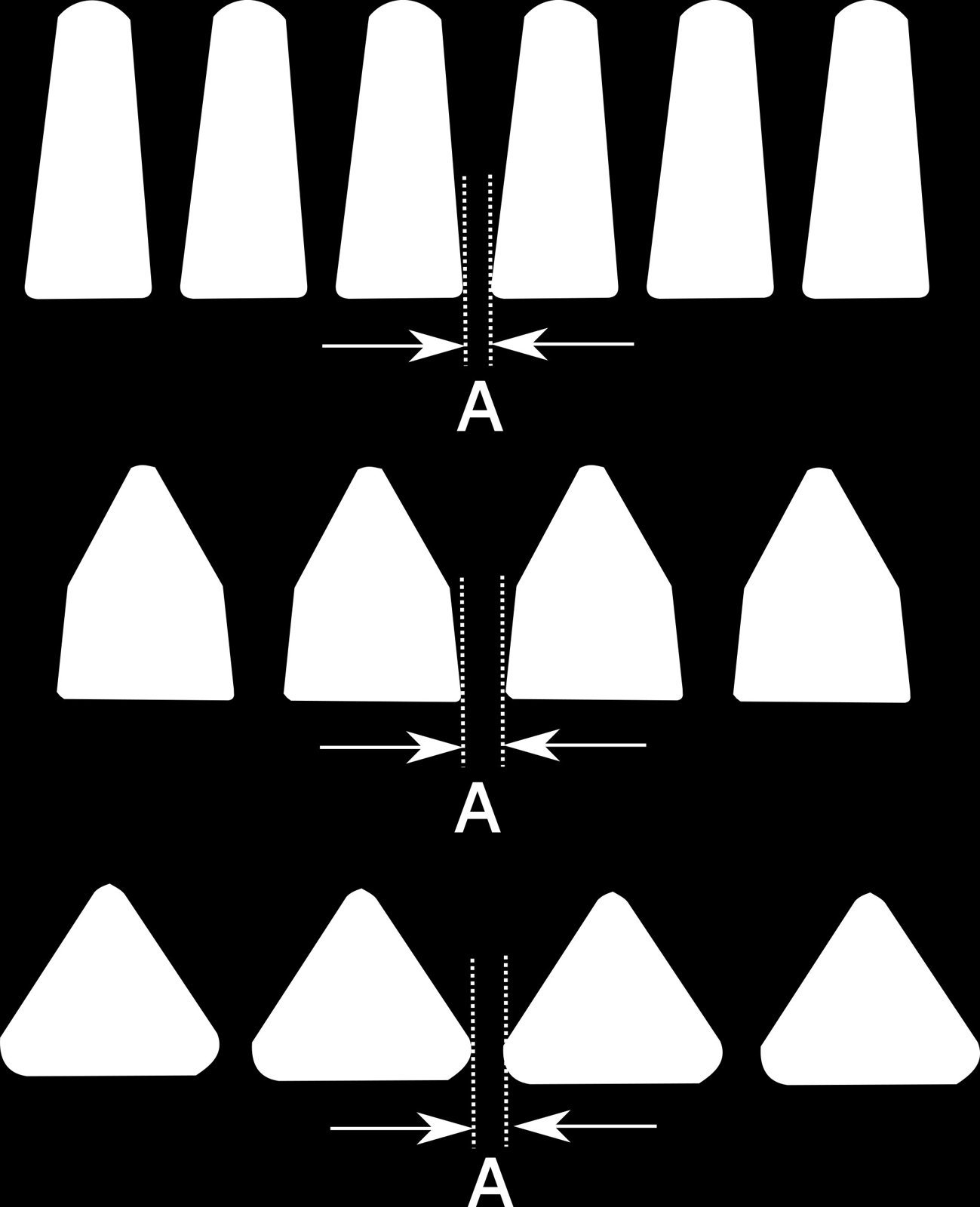

Automated inspection machine for Johnson filters (Wedge Wire Screen), designed to measure the constancy of the interwire gap (slot opening) along the filter length. Essential for quality control in water, oil, and gas well filtration systems. Supplied worldwide, including the USA, UK, Australia, Germany, Spain, Italy, and India.
Details
| Manufacturer | RIFTEK EUROPE |
| Model / product | Wedge Wire Screen Inspection Machine |
| Product group | KSA industrial |
| Type | Project system |
| Typical users | Screen / filter makers, water well & oil screens |
Key benefits
- Checks gap size along full screen
- Automatic scan with warnings
- Screens up to 12 m long
- Touch-screen workstation included
Key specifications
| gap measurement error | ±0.015 mm |
| max screen length | 12 m |
| gap sizes checked | 0.05 to 2.1 mm |
| scanning speed (up to) | 50 mm/s |
RIFTEK in Saudi Arabia
West Velocity Company (Al Khobar) is the authorised RIFTEK distributor in Saudi Arabia. Ask for a quotation on WhatsApp +966 54 126 7359 or info@west-velocity.com.
Source: riftek.com
Brochure: PDF
🔦
