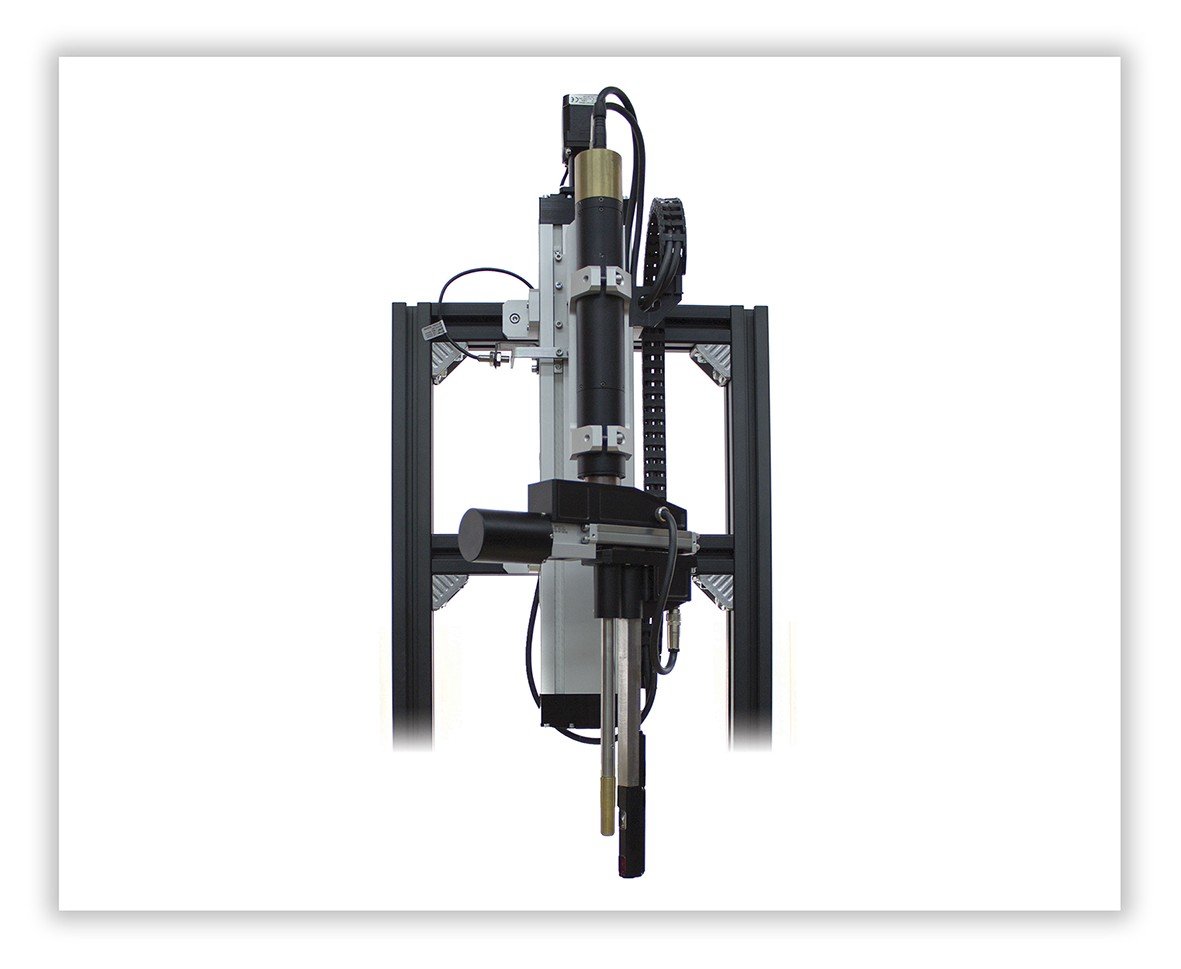

RIFTEK Laminated Tubes Geometry Measurement System
Contact for pricing
Available in Saudi Arabia
Non-contact system for measuring inner and outer geometry, foil thickness, weld parameters, and length of laminated tubes (PBL and ABL). Designed for high-precision, large-scale production. Supplied worldwide, including the USA, UK, Australia, Germany, Spain, Italy and India.
Details
| Manufacturer | RIFTEK EUROPE |
| Model / product | Laminated Tubes Geometry Measurement System |
| Product group | KSA industrial |
| Type | Project system |
| Typical users | Packaging tube producers |
Key benefits
- Scans inside and outside surfaces
- Checks foil and weld seam thickness
- Measures tube length too
- Self-calibrates with reference cylinders
Key specifications
| tube diameters | 13...50 mm |
| diameter accuracy | ± 10 um |
| foil and weld thickness accuracy | ± 5 um |
| length accuracy | ±0,1 mm |
RIFTEK in Saudi Arabia
West Velocity Company (Al Khobar) is the authorised RIFTEK distributor in Saudi Arabia. Ask for a quotation on WhatsApp +966 54 126 7359 or info@west-velocity.com.
Source: riftek.com
Brochure: PDF
🔦
