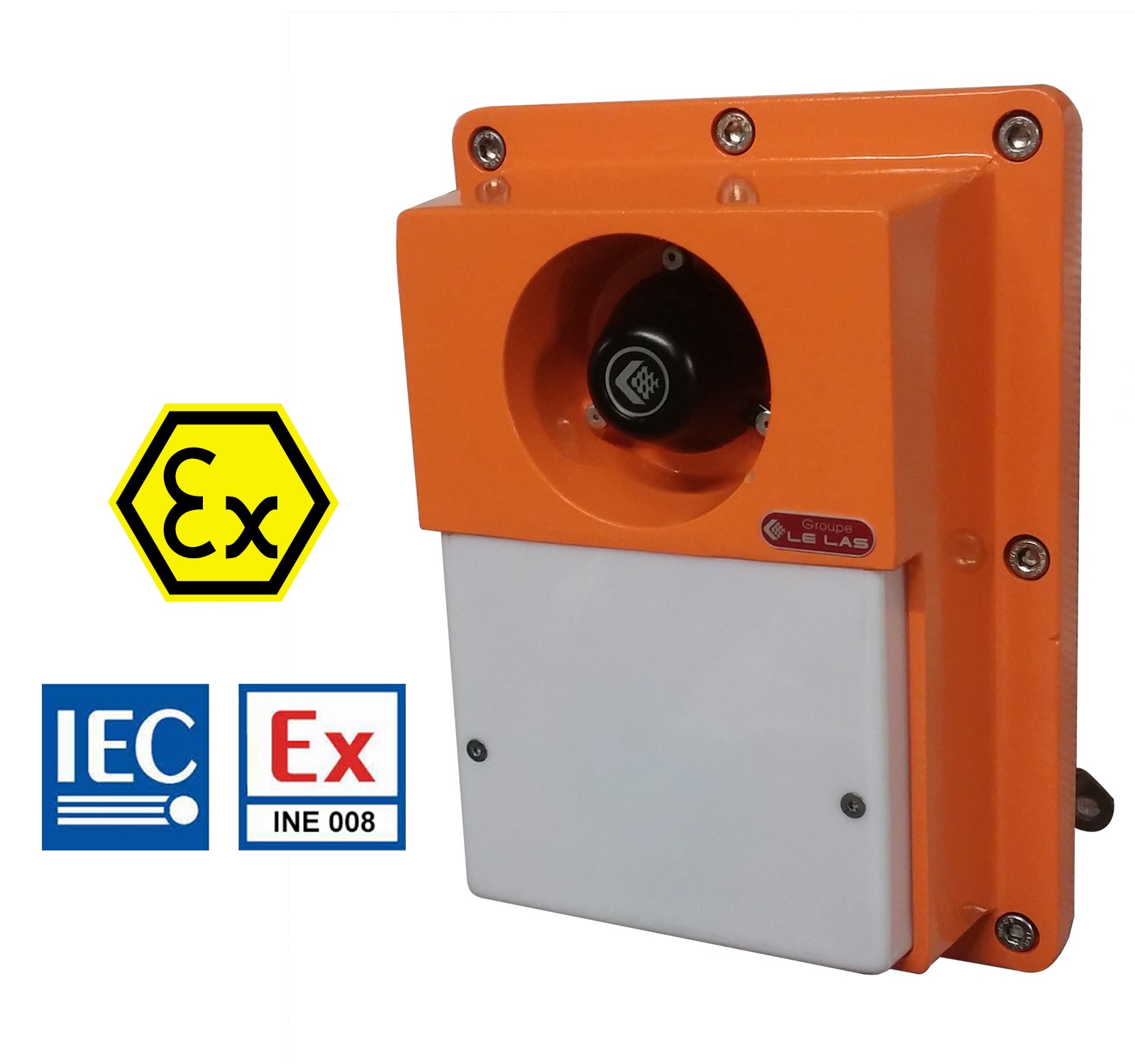

LE LAS ATEX Explosion-proof Howler and Flashing Beacon SGV 214A (IIB)
SGV 214A explosion-proof alarm units trigger a remote audible and visual signal (sounder plus flashing beacon) in explosive atmospheres of surface industries, in compliance with ATEX directive 2014/34/EU. The enclosure is EPIKOTE-painted cast aluminium with a hinged cover secured by 8 stainless steel screws.
The trigger signal can be the telephone ringing current or a low voltage (<60 V); optional remote controls TC2 and TC3 change signalling types remotely. LE LAS lists white, blue, red and yellow versions. The howler-only model KLM 214A is covered by the same manual.
Key features
- Combined sounder and flashing beacon
- Gas group IIB or IIB+H2; gas and dust version
- Sound power 15 W, up to 100 dB at 1 m, adjustable in 2 dB steps
- Low (350/450 Hz) and high (1100/1300 Hz) tones, two-tone and LE LAS melodies
- Flash approx. 15 J (A6) or 21 J (A7), 1 flash/s or cadenced 1, 2, 3 flashes/3 s
- Triggered by telephone ringing current or low voltage; remote controls TC2/TC3 optional
Technical data
| Ex marking (gas) | II2G Ex db IIB T6 Gb or Ex db IIB+H2 T6 Gb |
|---|---|
| Ex marking (gas and dust) | II2GD Ex db IIB T6 Gb / Ex tb IIIC T85°C Db IP6X |
| EU-type examination certificate | INERIS 03ATEX0238X |
| IECEx certificate | IECEx INE 20.0071X |
| Ambient temperature | -20°C to +50°C |
| Supply | 230 Vac, 115 Vac, 48 Vdc or 24 Vdc |
| Consumption | 500 mA at 48 Vdc; 1 A at 24 Vdc |
| Sound level | 100 dB at 1 m (explosion-proof sounder) |
| Flash energy | Approx. 15 J (A6) or 21 J (A7) |
| Ingress protection | IP65 (with greased cover joint) |
| Enclosure | Painted cast aluminium, hinged cover, 8 stainless steel screws |
| Cable glands | EGM8ATX for cable Ø7 to Ø12 mm |
| Weight | 8.5 kg |
