LE LAS ATEX Explosion-proof Horn Loudspeaker II2GD RED 225A (15 W)
Made in France
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

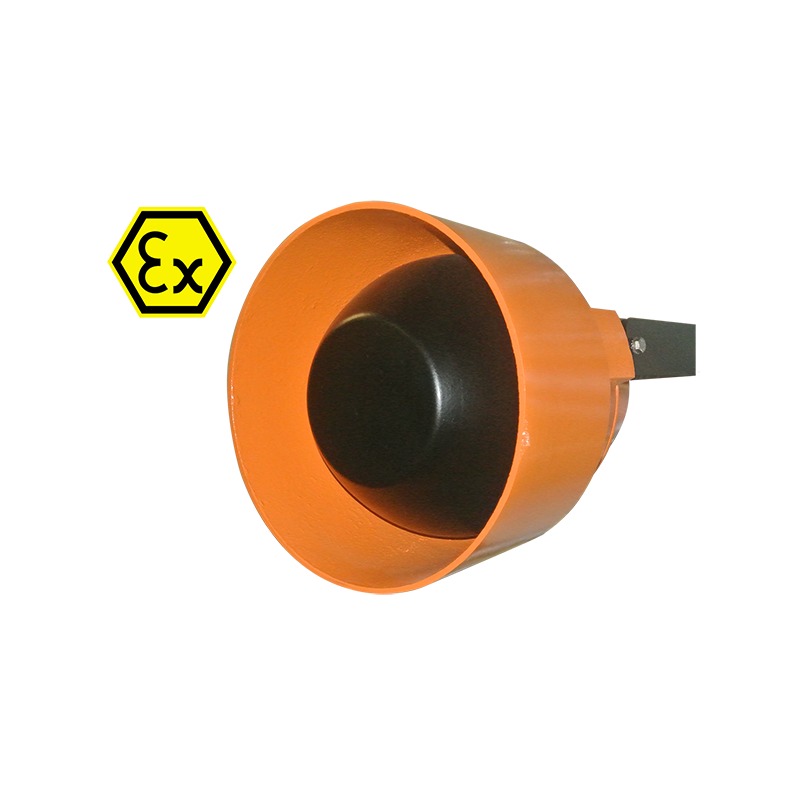

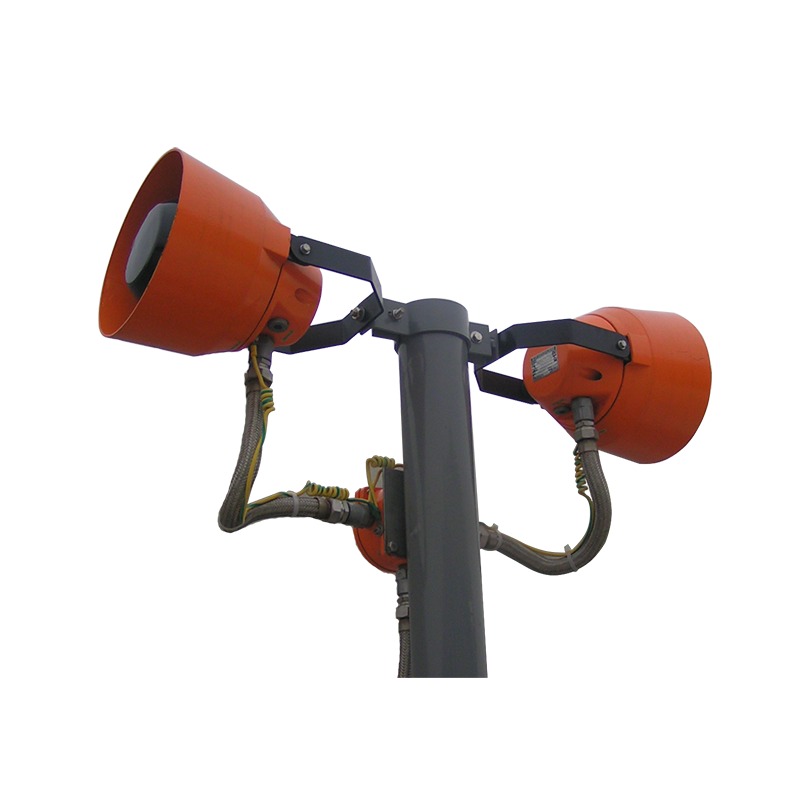

The RED 225A horn loudspeaker ensures sound communication on exposed industrial sites. Horn and cover are die-cast aluminium alloy with RAL2003 epoxy paint, the cover sealed by 3 stainless M8 hexagon socket screws, and an adjustable stainless steel mounting bracket is supplied.
Versions: C1A without transformer (15 ohm), C1D with 100 V transformer, C1E with amplifier, C1F with amplifier and muting.
Key features
- Flameproof horn loudspeaker, gas group IIC (A1) or IIB+H2+CS2 (A2)
- 15 W maximum power
- 15 ohm, 100 V line transformer or built-in amplifier versions
- 120° dispersion at 1000 Hz
- Adjustable stainless steel bracket
Technical data
| Ex marking | II2GD; RED 225 A1: Ex d IIC T6 IP6X T85°C; RED 225 A2: Ex d IIB+H2+CS2 T6 IP6X T85°C |
|---|---|
| Max power | 15 W |
| Sound pressure 1 W / 1 m | 90 dB (A1); 105 dB (A2) |
| Frequency range | 450-6500 Hz |
| Dispersion | 120° at 1000 Hz |
| Impedance | 15 ohm without transformer; 100 V with transformer; 10 kohm with amplifier |
| Material / colour | Cast aluminium alloy, RAL2003 orange |
| Cable entry | EGM8ATX for cable Ø7 to Ø12 mm |
| Weight | 7 kg without transformer; 8.5 kg with transformer |
Supply in Saudi Arabia
LE LAS products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.lelas.fr
Datasheet / brochure: PDF
