CODIPRO TSR Triple Swivel Lifting Ring (M8-M56 / UNC 5/16"-2", WLL 0.4-22 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

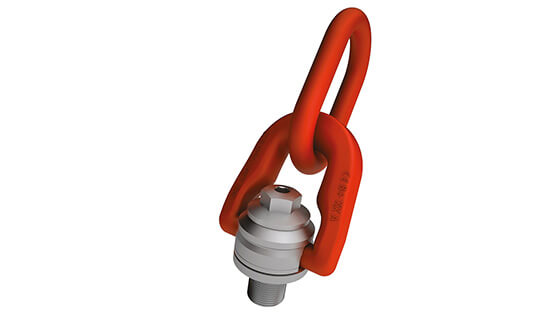

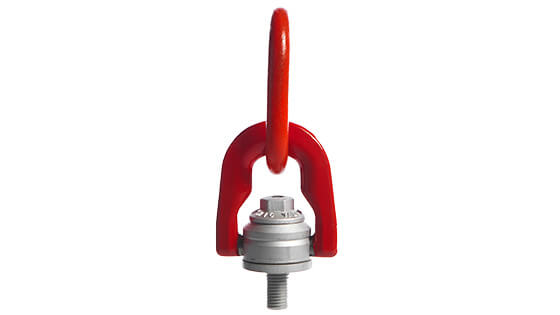

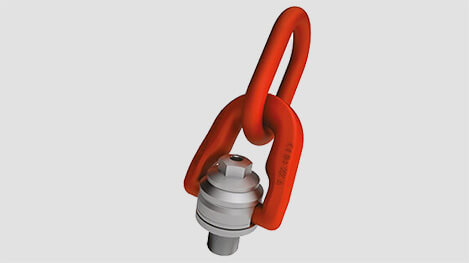

The TSR is a triple swivel model with two pivots, used for smooth tilting, turning and flipping. It carries CE, WLL and tightening-torque markings. Note from CODIPRO: the TSR is not recommended for lengthy rotations of full loads.
Key features
- Metric and UNC threads: M 8 to M 56 - WLL from 0.40 t to 22.00 t
- UNC 5/16″ to UNC 2″- WLL from 1,000 lbs to 50,000 lbs
- Safety factor 4:1 and 5:1
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- Sizes marked * in the table are supplied on request
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| TSR M 8 | M 8 (x1,25) | 0.40 t | - | 15 | 6 Nm | 0.4 |
| TSR M 10 | M 10 (x1,50) | 0.70 t | - | 18 | 10 Nm | 0.4 |
| TSR M 12 | M 12 (x1,75) | 1.05 t | - | 21 | 15 Nm | 0.4 |
| TSR M 14 | M 14 (x2) | 1.40 t | - | 23 | 30 Nm | 1.1 |
| TSR M 16 | M 16 (x2) | 2.00 t | - | 27 | 50 Nm | 1.2 |
| TSR M 18 | M 18 (x2,5) | 2.30 t | - | 27 | 70 Nm | 1.2 |
| TSR M 20 | M 20 (x2,5) | 2.50 t | - | 30 | 100 Nm | 1.2 |
| TSR M 22* | M 22 (x2,5) | 3.00 t | - | 33 | 120 Nm | 2.8 |
| TSR M 24* | M 24 (x3) | 4.00 t | - | 36 | 160 Nm | 2.9 |
| TSR M 27* | M 27 (x3) | 5.00 t | - | 36 | 200 Nm | 2.9 |
| TSR M 30* | M 30 (x3,5) | 6.30 t | - | 45 | 250 Nm | 3.0 |
| TSR M 36* | M 36 (x4) | 10.00 t | - | 54 | 320 Nm | 7.6 |
| TSR M 42* | M 42 (x4,5) | 12.50 t | - | 63 | 400 Nm | 7.8 |
| TSR M 48 | M 48 (x5) | - | 20.00 t | 68 | 600 Nm | 17.5 |
| TSR M 56 | M 56 (x5,5) | - | 22.00 t | 78 | 600 Nm | 18.0 |
| TSR U 516 | UNC 5/16"-18 | 1,000 lbs | - | 15 | 7 ft-lb | 0.4 |
| TSR U 038 | UNC 3/8"-16 | 1,300 lbs | - | 18 | 8 ft-lb | 0.4 |
| TSR U 050 | UNC 1/2"-13 | 2,400 lbs | - | 21 | 12 ft-lb | 0.4 |
| TSR U 058 | UNC 5/8"-11 | 3,900 lbs | - | 27 | 40 ft-lb | 1.1 |
| TSR U 075 | UNC 3/4"-10 | 5,250 lbs | - | 30 | 80 ft-lb | 1.2 |
| TSR U 078* | UNC 7/8"-9 | 6,600 lbs | - | 33 | 90 ft-lb | 2.7 |
| TSR U 100* | UNC 1"-8 | 10,000 lbs | - | 36 | 125 ft-lb | 2.8 |
| TSR U 125* | UNC 1" 1/4-7 | 14,000 lbs | - | 46 | 200 ft-lb | 7.1 |
| TSR U 150* | UNC 1" 1/2-6 | 20,000 lbs | - | 61 | 240 ft-lb | 7.7 |
| TSR U 200 | UNC 2" 4,5 | - | 50,000 lbs | 76 | 450 ft-lb | 17.7 |
* On request. M48, M56 and UNC 2" are rated at safety factor 4:1.
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
