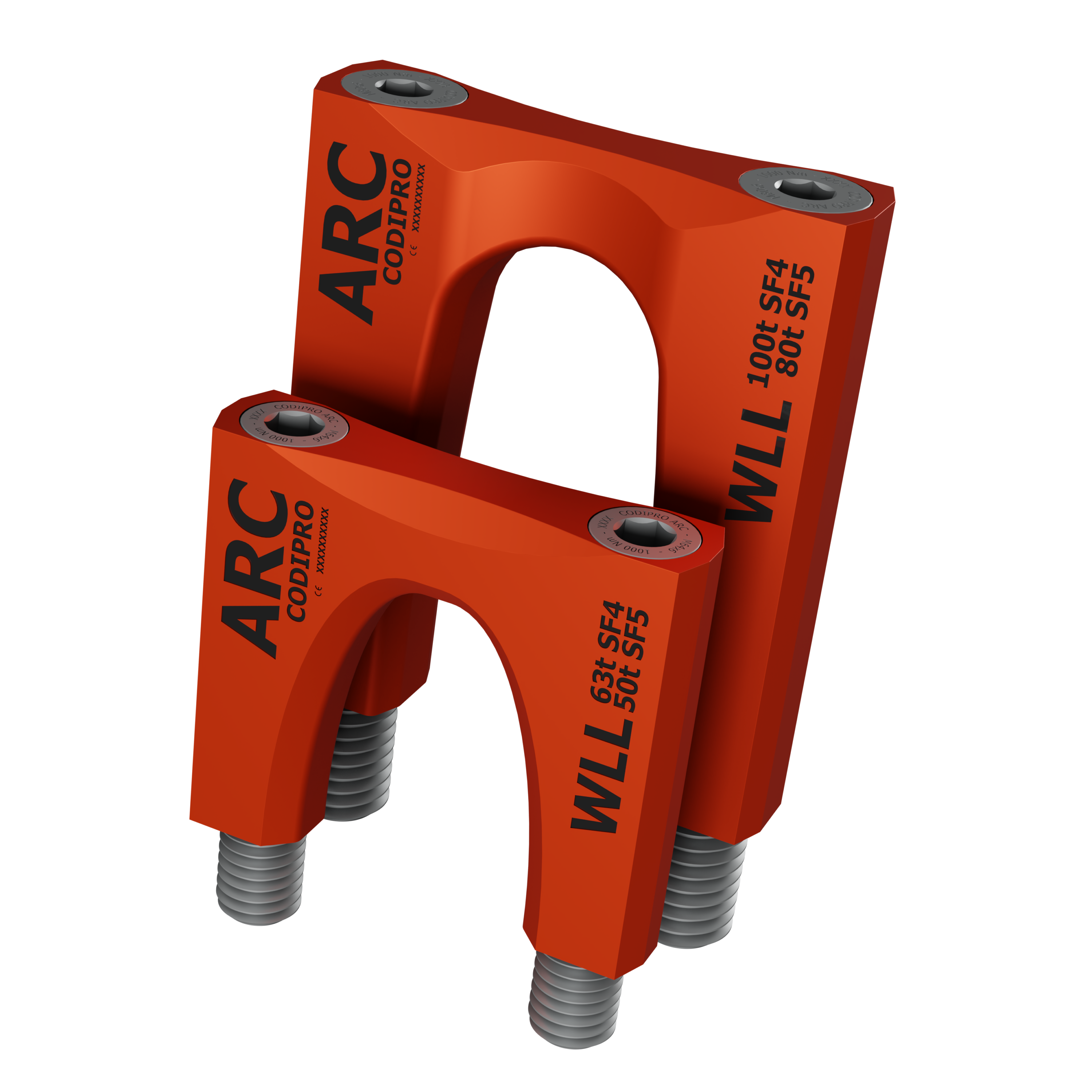

CODIPRO ARC Bolt-On Lifting Point for Automatic Hooks (ARC 50 / ARC 80)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The lifting point is composed of a lifting arch and two screws intended to bolt the arch onto the load. Compatibility with standard hooks or shackles can be confirmed on request.
Key features
- WLL of up to 100 t
- Safety factor 4:1 and 5:1
- External dimensions: E80 x L360 x H315 mm / E100 x L410 x H475
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- In compliance with the REACH regulation
- Individual traceability number
Range
| Reference | WLL | External dimensions (as published) |
|---|---|---|
| ARC 50 | 50 t | E80 x L360 x H315 mm |
| ARC 80 | 80 t | E100 x L410 x H475 mm |
Dimension-to-model pairing as listed on codipro.net (two sizes published).
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
