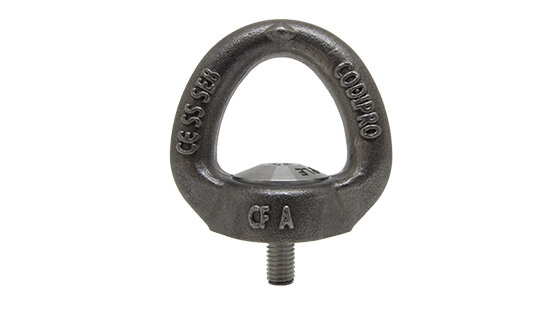

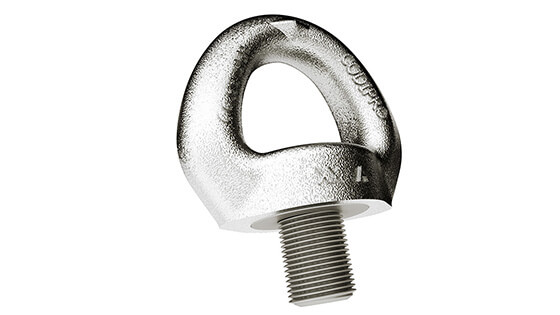

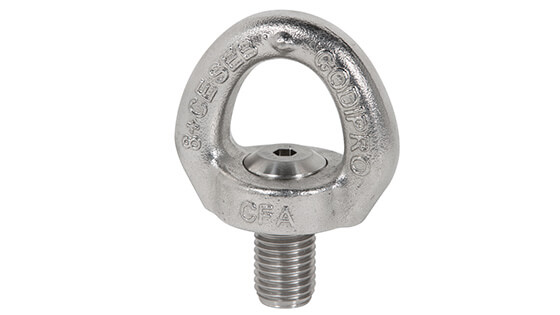

CODIPRO SS.SEB Stainless Steel 316L Swivel Eye Bolt (M8-M24 / UNC 3/8"-1/2", WLL 0.2-2.5 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The SS.SEB is the stainless-steel version of the SEB swivel eye bolt for humid, chemical and marine environments. Also available in steel (SEB).
Key features
- Standard metric threads available: M 8 to M 24 - WLL from 0.20 t to 2.50 t
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation
- Stainless-steel 316L
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| SS.SEB M 8 | M 8 (x1,25) | 0.20 t | 0.20 t | 14 | 6 Nm | 0.24 |
| SS.SEB M 10 | M 10 (x1,5) | 0.30 t | 0.30 t | 17 | 10 Nm | 0.24 |
| SS.SEB M 12 0,4t | M 12 (x1,75) | 0.40 t | 0.40 t | 21 | 15 Nm | 0.24 |
| SS.SEB M 12 | M 12 (x1,75) | 0.55 t | 0.55 t | 21 | 15 Nm | 0.80 |
| SS.SEB M 16 | M 16 (x2) | 1.20 t | 1.20 t | 27 | 50 Nm | 0.82 |
| SS.SEB M 20 | M 20 (x2,5) | 1.50 t | 1.50 t | 30 | 100 Nm | 0.84 |
| SS.SEB M 24 | M 24 (x3) | 2.50 t | 2.50 t | 36 | 100 Nm | 0.90 |
| SS.SEB U 038 | UNC 3/8"-16 | 550 lbs | 550 lbs | 17 | 8 ft-lb | 0.24 |
| SS.SEB U 050 | UNC 1/2"-13 | 880 lbs | 880 lbs | 21 | 12 ft-lb | 0.24 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
