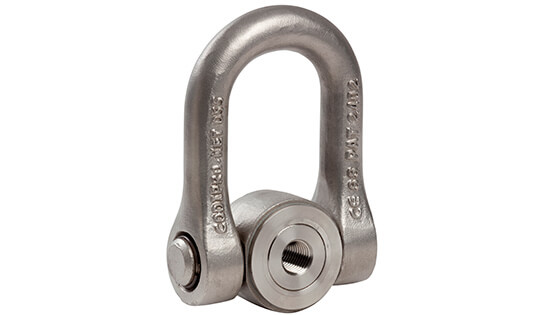

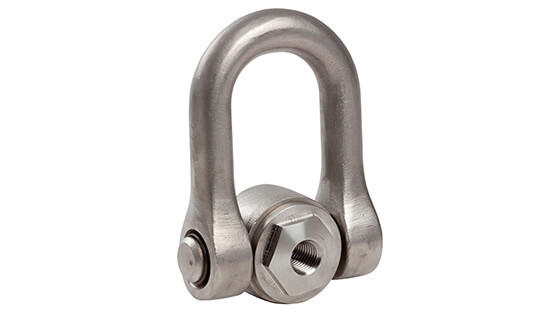

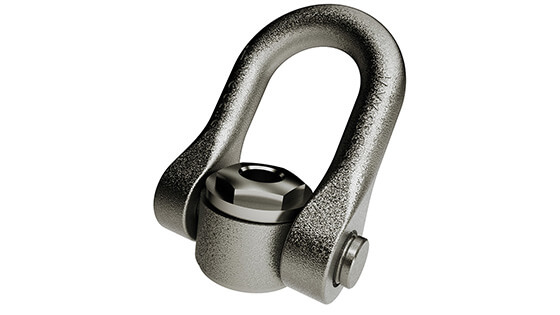

CODIPRO SS.FE.DSS Female Stainless Steel 316L Universal Double Swivel Lifting Ring (M24-M36 / UNC 1"-1 1/2", WLL 2.7-5 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The SS.FE.DSS is the female stainless version of the DSS universal ring. Also available as male (SS.DSS) and steel (FE.DSS).
Key features
- Metric and UNC threads: M 24 to M 36 - WLL from 2.70 t to 5.00 t
- UNC 1’’ to UNC 1″1/2 - WLL from 6,000 lbs to 11,000 lbs
- Safety factor 4:1 and 5:1
- Stainless-steel 316L
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L max (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| SS.FE.DSS M 24 | M 24 (x3) | 2.70 t | 2.70 t | 66 | 160 Nm | 5.8 |
| SS.FE.DSS M 30 | M 30 (x3,5) | 3.50 t | 3.50 t | 66 | 250 Nm | 5.8 |
| SS.FE.DSS M 33 | M 33 (x3,5) | 3.50 t | 3.50 t | 66 | 250 Nm | 5.8 |
| SS.FE.DSS M 36 | M 36 (x4) | 5.00 t | 5.00 t | 66 | 320 Nm | 5.8 |
| SS.FE.DSS U 100 | UNC 1’’-8 | 6,000 lbs | 6,000 lbs | 66 | 125 ft-lb | 5.4 |
| SS.FE.DSS U 125 | UNC 1" 1/4-7 | 7,500 lbs | 7,500 lbs | 66 | 200 ft-lb | 5.4 |
| SS.FE.DSS U 138 | UNC 1" 3/8-6 | 7,500 lbs | 7,500 lbs | 66 | 240 ft-lb | 5.4 |
| SS.FE.DSS U 150 | UNC 1" 1/2-6 | 11,000 lbs | 11,000 lbs | 89 | 240 ft-lb | 12 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
