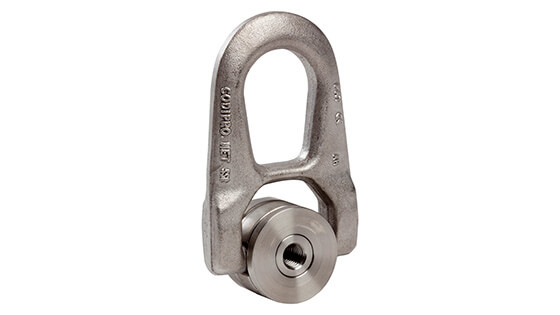

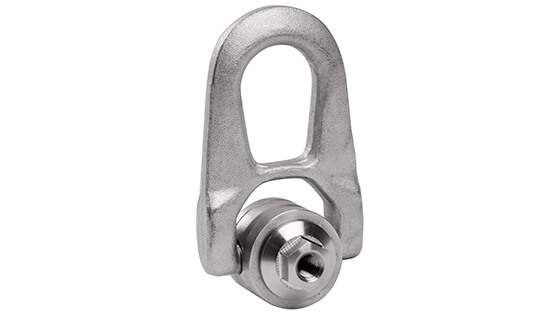

CODIPRO SS.FE.DSR Female Stainless Steel 316L Double Swivel Lifting Ring (M8-M22 / UNC 5/16"-7/8", WLL 0.3-2.2 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The SS.FE.DSR is the female stainless version of the DSR. Also available as male (SS.DSR) and steel (FE.DSR).
Key features
- Metric and UNC threads: M 8 to M 22 - WLL from 0.30 t to 2.20 t
- UNC 5/16'' to UNC 7/8'' - WLL from 600 lbs to 5,100 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Stainless-steel 316L
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L max (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| SS.FE.DSR M 8 | M 8 (x1,25) | 0.30 t | 0.30 t | 43 | 6 Nm | 0.9 |
| SS.FE.DSR M 10 | M 10 (x1,50) | 0.50 t | 0.50 t | 43 | 10 Nm | 0.9 |
| SS.FE.DSR M 12 | M 12 (x1,75) | 0.80 t | 0.80 t | 43 | 15 Nm | 0.9 |
| SS.FE.DSR M 14 | M 14 (x2) | 1.00 t | 1.00 t | 43 | 30 Nm | 0.9 |
| SS.FE.DSR M 16 | M 16 (x2) | 1.40 t | 1.50 t | 43 | 50 Nm | 0.9 |
| SS.FE.DSR M 18 | M 18 (x2,5) | 1.40 t | 1.50 t | 62 | 70 Nm | 2.6 |
| SS.FE.DSR M 20 | M 20 (x2,5) | 1.40 t | 1.60 t | 62 | 100 Nm | 2.6 |
| SS.FE.DSR M 22 | M 22 (x2,5) | 2.20 t | 2.20 t | 62 | 120 Nm | 2.6 |
| SS.FE.DSR U 516 | UNC 5/16’’-18 | 600 lbs | 650 lbs | 43 | 5 ft-lb | 0.9 |
| SS.FE.DSR U 038 | UNC 3/8"-16 | 1,000 lbs | 1,000 lbs | 43 | 8 ft-lb | 0.9 |
| SS.FE.DSR U 050 | UNC 1/2"-13 | 1,800 lbs | 1,800 lbs | 43 | 12 ft-lb | 0.9 |
| SS.FE.DSR U 058 | UNC 5/8"-11 | 2,500 lbs | 3,000 lbs | 43 | 40 ft-lb | 0.9 |
| SS.FE.DSR U 075 | UNC 3/4"-10 | 3,600 lbs | 3,800 lbs | 62 | 80 ft-lb | 2.6 |
| SS.FE.DSR U 078 | UNC 7/8"-9 | 5,000 lbs | 5,100 lbs | 62 | 90 ft-lb | 2.6 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
