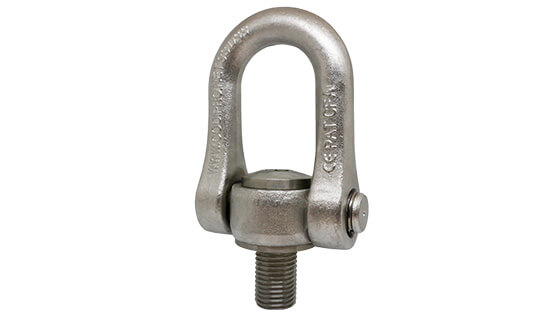

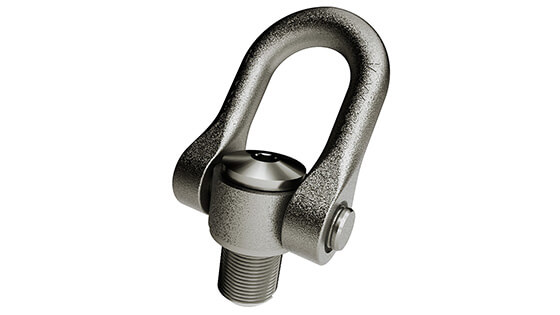

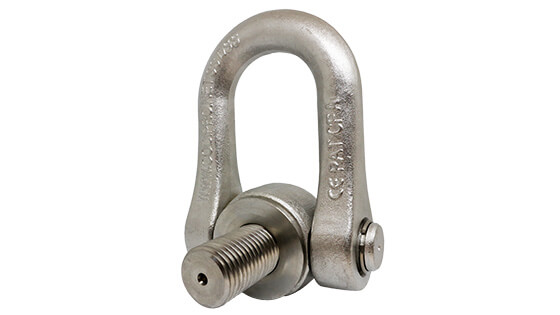

CODIPRO SS.DSS Stainless Steel 316L Universal Double Swivel Lifting Ring (M24-M56 / UNC 1"-2", WLL 2.7-8 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The SS.DSS combines the DSS double swivel design with 316L stainless steel for corrosion resistance. Also available as female (SS.FE.DSS) and steel (DSS).
Key features
- Metric and UNC threads: M 24 to M 56 - WLL from 2.70 t to 8.00 t
- UNC 1’’ to UNC 2″1/2 - WLL from 6,000 lbs to 14,000 lbs
- Safety factor 4:1 and 5:1
- Stainless-steel 316L
- Approved for liftings at 0° and 90°
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| SS.DSS M 24 | M 24 (x3) | 2.70 t | 2.70 t | 36 | 160 Nm | 5.2 |
| SS.DSS M 30 | M 30 (x3,5) | 3.50 t | 3.50 t | 45 | 250 Nm | 5.2 |
| SS.DSS M 33 | M 33 (x3,5) | 3.50 t | 3.50 t | 50 | 250 Nm | 5.2 |
| SS.DSS M 36 | M 36 (x4) | 5.00 t | 5.00 t | 54 | 320 Nm | 5.2 |
| SS.DSS M 36x3 | M 36 (x3) | 5.00 t | 5.00 t | 54 | 320 Nm | 5.2 |
| SS.DSS M 39 | M 39 (x4) | 5.00 t | 5.00 t | 58 | 320 Nm | 5.4 |
| SS.DSS M 42 | M 42 (x4,5) | 6.00 t | 6.00 t | 63 | 400 Nm | 5.4 |
| SS.DSS M 42x3 | M 42 (x3) | 6.00 t | 6.00 t | 63 | 400 Nm | 5.4 |
| SS.DSS M 45 | M 45 (x4,5) | 6.00 t | 6.00 t | 63 | 400 Nm | 5.7 |
| SS.DSS M 48 | M 48 (x5) | 6.40 t | 6.40 t | 68 | 600 Nm | 11.0 |
| SS.DSS M 48x3 | M 48 (x3) | 6.40 t | 6.40 t | 68 | 600 Nm | 11.0 |
| SS.DSS M 48x4 | M 48 (x4) | 6.40 t | 6.40 t | 68 | 600 Nm | 11.0 |
| SS.DSS M 52 | M 52 (x5) | 6.40 t | 6.40 t | 68 | 600 Nm | 11.2 |
| SS.DSS M 56 | M 56 (x5,5) | 8.00 t | 8.00 t | 78 | 600 Nm | 11.3 |
| SS.DSS M 56x4 | M 56 (x4) | 8.00 t | 8.00 t | 78 | 600 Nm | 11.4 |
| SS.DSS U 100 | UNC 1’’-8 | 6,000 lbs | 6,000 lbs | 36 | 125 ft-lb | 5.2 |
| SS.DSS U 125 | UNC 1" 1/4-7 | 7,500 lbs | 7,500 lbs | 45 | 200 ft-lb | 5.2 |
| SS.DSS U 138 | UNC 1" 3/8-6 | 7,500 lbs | 7,500 lbs | 54 | 240 ft-lb | 5.2 |
| SS.DSS U 150 | UNC 1" 1/2-6 | 11,000 lbs | 11,000 lbs | 54 | 240 ft-lb | 5.4 |
| SS.DSS U 200 | UNC 2" 4,5 | 14,000 lbs | 14,000 lbs | 76 | 450 ft-lb | 11.1 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
