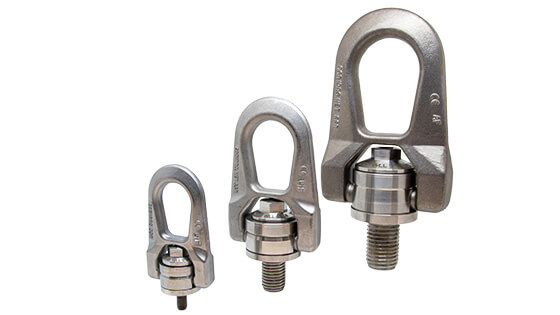

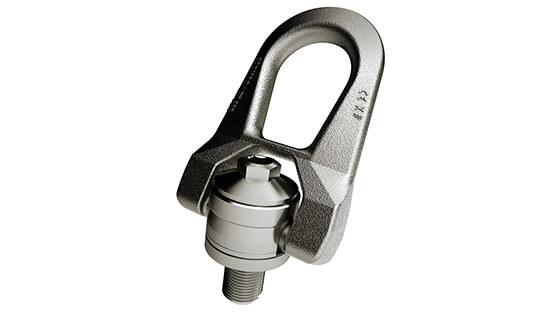

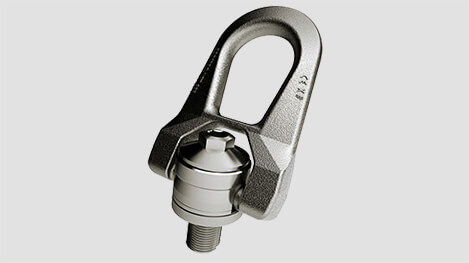

CODIPRO SS.DSR Stainless Steel 316L Double Swivel Lifting Ring (M6-M30 / UNC 1/4"-1", WLL 0.1-3.5 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The SS.DSR is the stainless-steel version of the DSR, giving corrosion resistance and long service life. Also available as female (SS.FE.DSR), steel (DSR) and quick-lift (SS.QL.DSR).
Key features
- Metric and UNC threads: M 6 to M 30 - WLL from 0.10 t to 3.50 t
- UNC 1/4″ to UNC 1″ - WLL from 400 lbs to 6,000 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Stainless-steel 316L
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| SS.DSR M 6 | M 6 (x1) | 0.10 t | 0.15 t | 15 | 4 Nm | 0.3 |
| SS.DSR M 8 | M 8 (x1,25) | 0.30 t | 0.30 t | 16 | 6 Nm | 0.3 |
| SS.DSR M 10 | M 10 (x1,50) | 0.50 t | 0.50 t | 16 | 10 Nm | 0.3 |
| SS.DSR M 12 | M 12 (x1,75) | 0.80 t | 0.80 t | 19 | 15 Nm | 0.3 |
| SS.DSR M 14 | M 14 (x2) | 1.00 t | 1.00 t | 29 | 30 Nm | 0.9 |
| SS.DSR M 16 | M 16 (x2) | 1.40 t | 1.50 t | 26 | 50 Nm | 0.9 |
| SS.DSR M 18 | M 18 (x2,5) | 1.40 t | 1.50 t | 30 | 70 Nm | 1.0 |
| SS.DSR M 20 | M 20 (x2,5) | 1.40 t | 1.60 t | 30 | 100 Nm | 1.0 |
| SS.DSR M 22 | M 22 (x2,5) | 2.20 t | 2.20 t | 42 | 120 Nm | 2.5 |
| SS.DSR M 24 | M 24 (x3) | 2.70 t | 2.70 t | 42 | 160 Nm | 2.6 |
| SS.DSR M 27 | M 27 (x3) | 2.80 t | 2.90 t | 42 | 200 Nm | 2.7 |
| SS.DSR M 30 | M 30 (x3,5) | 3.00 t | 3.50 t | 47 | 250 Nm | 2.8 |
| SS.DSR U 025 | UNC 1/4"-20 | 400 lbs | 500 lbs | 13 | 3 ft-lb | 0.3 |
| SS.DSR U 516 | UNC 5/16’’-18 | 600 lbs | 650 lbs | 15 | 5 ft-lb | 0.3 |
| SS.DSR U 038 | UNC 3/8"-16 | 1,000 lbs | 1,000 lbs | 17 | 8 ft-lb | 0.3 |
| SS.DSR U 050 | UNC 1/2"-13 | 1,800 lbs | 1,850 lbs | 21 | 12 ft-lb | 0.3 |
| SS.DSR U 058 | UNC 5/8"-11 | 2,500 lbs | 3,000 lbs | 27 | 40 ft-lb | 0.9 |
| SS.DSR U 075 | UNC 3/4"-10 | 3,600 lbs | 3,800 lbs | 30 | 80 ft-lb | 0.9 |
| SS.DSR U 078 | UNC 7/8"-9 | 5,000 lbs | 5,100 lbs | 33 | 90 ft-lb | 2.5 |
| SS.DSR U 100 | UNC 1"-8 | 6,000 lbs | 6,000 lbs | 36 | 125 ft-lb | 2.6 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
