CODIPRO SEB Swivel Eye Bolt (GRADUP, M8-M48 / UNC 3/8"-2", WLL 0.4-16 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

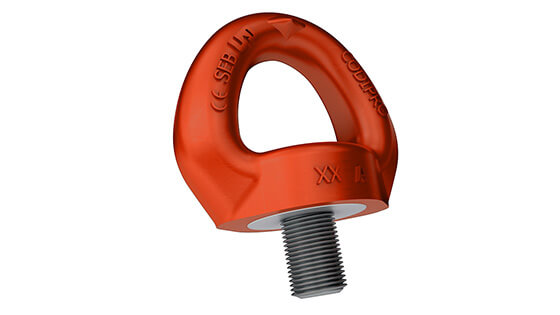

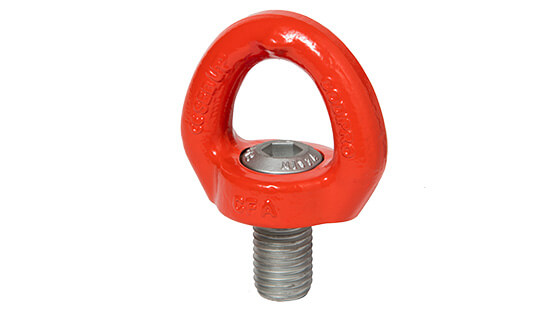

The SEB is a single swivel lifting ring. Its self-orientation system guides it in the sling direction and lets the hook move parallel to the bearing surface when lifting at 90°. It can be used for straight, angled, tilting and rotating lifts. Also available as female (FE.SEB), stainless steel (SS.SEB) and long-bolt versions; a dedicated torque key is available for M8 to M24.
Key features
- Metric and UNC threads: M 8 to M 48 - WLL from 0.40 t to 16.00 t
- UNC 3/8″ to UNC 2'' - WLL from 1,200 lbs to 35,200 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
- Patented design
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| SEB M 8 UP | M 8 (x1,25) | 0.40 t | 0.50 t | 14 | 6 Nm | 0.24 |
| SEB M 10 UP | M 10 (x1,5) | 0.50 t | 0.70 t | 17 | 10 Nm | 0.24 |
| SEB M 12 UP | M 12 (x1,75) | 0.80 t | 0.90 t | 21 | 15 Nm | 0.24 |
| SEB M 16 UP | M 16 (x2) | 1.40 t | 1.80 t | 27 | 50 Nm | 0.8 |
| SEB M 20 UP | M 20 (x2,5) | 2.00 t | 2.70 t | 30 | 100 Nm | 0.8 |
| SEB M 24 3t8 UP | M 24 (x3) | 3.20 t | 3.80 t | 36 | 160 Nm | 0.8 |
| SEB M 24 4t2 UP | M 24 (x3) | 3.40 t | 4.20 t | 36 | 160 Nm | 2.6 |
| SEB M 30 UP | M 30 (x3,5) | 5.50 t | 6.30 t | 45 | 250 Nm | 2.7 |
| SEB M 36 UP | M 36 (x4) | 9.00 t | 11.00 t | 54 | 320 Nm | 7.0 |
| SEB M 42 UP | M 42 (x4,5) | 12.00 t | 15.00 t | 63 | 400 Nm | 7.0 |
| SEB M 48 UP | M 48 (x5) | 15.00 t | 16.00 t | 70 | 600 Nm | 7.0 |
| SEB U 038 UP | UNC 3/8"-16 | 1,200 lbs | 1,500 lbs | 17 | 8 ft-lb | 0.24 |
| SEB U 050 UP | UNC 1/2"-13 | 1,800 lbs | 1,950 lbs | 21 | 12 ft-lb | 0.24 |
| SEB U 058 UP | UNC 5/8"-11 | 3,200 lbs | 4,000 lbs | 27 | 40 ft-lb | 0.8 |
| SEB U 075 UP | UNC 3/4"-10 | 4,750 lbs | 5,900 lbs | 30 | 80 ft-lb | 0.8 |
| SEB U 100 UP | UNC 1"-8 | 7,500 lbs | 9,300 lbs | 36 | 125 ft-lb | 2.6 |
| SEB U 125 UP | UNC 1" 1/4-7 | 12,200 lbs | 13,800 lbs | 45 | 200 ft-lb | 2.8 |
| SEB U 150 UP | UNC 1" 1/2-6 | 20,000 lbs | 25,000 lbs | 62 | 240 ft-lb | 7 |
| SEB U 200 UP | UNC 2"-4,5 | 33,000 lbs | 35,200 lbs | 70 | 450 ft-lb | 7.3 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
