CODIPRO QL.DSR Quick Lift Double Swivel Ring (GRADUP, M8-M30 / UNC 1/2"-1", WLL 0.25-3.5 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

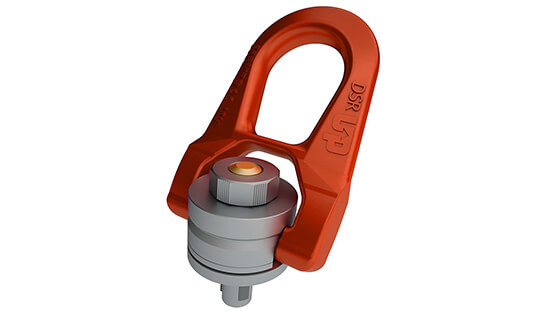

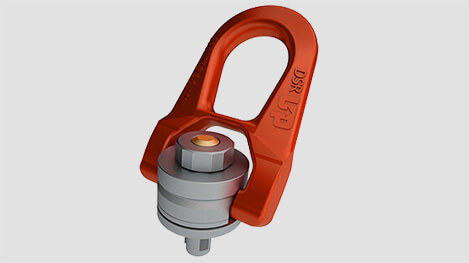

The QLR (Quick Lift Ring) or QL.DSR is a double swivel ring for particularly fast mounting. Apply the tightening torque engraved on the ring for any lifting configuration. Also available in stainless steel (SS.QL.DSR).
Key features
- Metric and UNC threads: M 8 to M 30 - WLL from 0.25 t to 3.5 t
- UNC 1/2” to UNC 1″ - WLL from 1,300 lbs to 5,000 lbs*
- Safety factor 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
- No circlips, no ball bearing
- Mounts up to 80 % faster than a screw-in ring

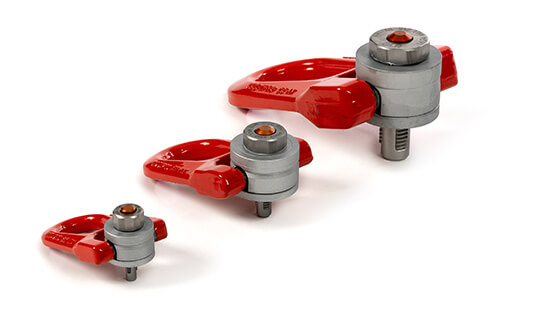

Range
| Reference | Thread | WLL SF 5:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|
| QL.DSR M 8 | M 8 (x1,25) | 0.25 t | 17.5 | 20 Nm | 0.3 |
| QL.DSR M 10 | M 10 (x1,5) | 0.40 t | 19.5 | 30 Nm | 0.3 |
| QL.DSR M 12 | M 12 (x1,75) | 0.65 t | 23 | 60 Nm | 0.9 |
| QL.DSR M 14 | M 14 (x2) | 0.70 t | 23 | 80 Nm | 0.9 |
| QL.DSR M 16 | M 16 (x2) | 1.05 t | 27 | 100 Nm | 0.9 |
| QL.DSR M 20 | M 20 (x2,5) | 1.70 t | 30 | 160 Nm | 2.6 |
| QL.DSR M 24 | M 24 (x3) | 2.50 t | 36 | 180 Nm | 2.6 |
| QL.DSR M 27 | M27 (x3) | 3.00* t | 40 | in certification | 2.7 |
| QL.DSR M 30 | M30 (x3,5) | 3.50 t | 45 | 200 Nm | 2.7 |
| QL.DSR U 050 | UNC 1/2"-13 | 1,300 lbs | 23 | 45 ft-lb | 0.9 |
| QL.DSR U 075 | UNC 3/4"-10 | 3,400* lbs | 30 | in certification | 2.6 |
| QL.DSR U 100 | UNC 1"-8 | 5,000* lbs | 36 | in certification | 2.6 |
* In certification process (as published by CODIPRO).
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
