CODIPRO OS.DSS / DSS Offshore Universal Double Swivel Shackle (DNV type approved, M24-M42 / UNC 1"-1 3/4", WLL 4.5-15 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

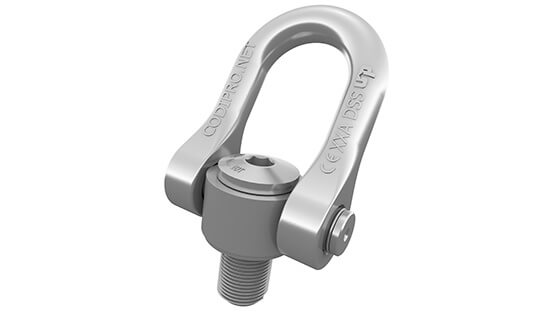

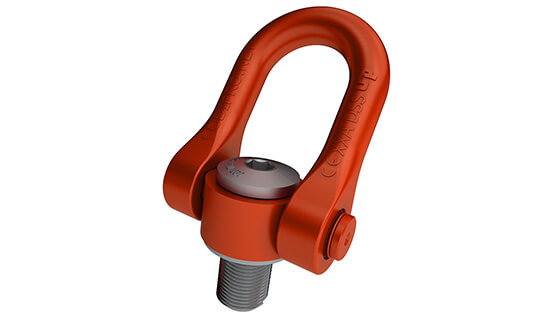

The universal swivel offshore shackle DSS or OS.DSS is a double swivel ring for rotations under load, with perfect alignment to the sling. Breaking load is four or five times the rated capacity.
Key features
- Standard GRADUP lifting rings or with total zinc lamellar coating
- Metric and UNC threads: M 24 to M 42 - WLL from 4.50 t to 15.00 t
- UNC 1’’ to UNC 1’’ 3/4 - WLL from 10,000 lbs to 33,000 lbs
- Safety factor 4:1 and 5:1
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- DNVGL-ST-0378 type approval certificate N° TAS00001ZG
- Total zinc lamellar coating (OS.DSS)
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| OS.DSS M 24 UP | M 24 (x3) | 4.50 t | 5.50 t | 36 | 160 Nm | 5.4 |
| OS.DSS M 30 UP | M 30 (x3.5) | 7.70 t | 8.50 t | 45 | 250 Nm | 5.5 |
| OS.DSS M 36 UP | M 36 (x4) | 11.00 t | 12.00 t | 54 | 320 Nm | 5.5 |
| OS.DSS M 42 UP | M 42 (x4,5) | 13.00 t | 15.00 t | 63 | 400 Nm | 5.8 |
| OS.DSS U 100 UP | UNC 1’’-8 | 10,000 lbs | 13,000 lbs | 36 | 125 ft-lb | 5.4 |
| OS.DSS U 125 UP | UNC 1" 1/4-7 | 15,000 lbs | 19,000 lbs | 45 | 200 ft-lb | 5.4 |
| OS.DSS U 150 UP | UNC 1" 1/2-6 | 22,000 lbs | 27,000 lbs | 54 | 240 ft-lb | 5.4 |
| OS.DSS U 175 UP | UNC 1" 3/4-5 | 27,000 lbs | 33,000 lbs | 63 | 300 ft-lb | 5.9 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- DNVGL-ST-0378 type approval, certificate N° TAS00001ZG
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
