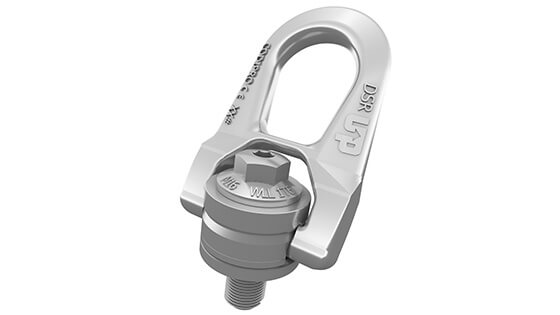

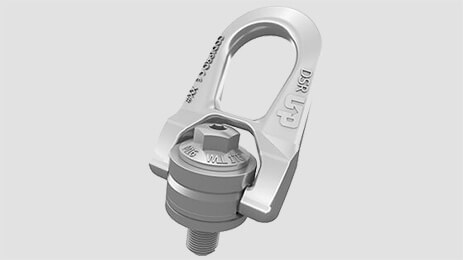

CODIPRO OS.DSR / DSR Offshore Double Swivel Lifting Ring (DNV type approved, M10-M30 / UNC 3/8"-1 1/4", WLL 0.7-6.3 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

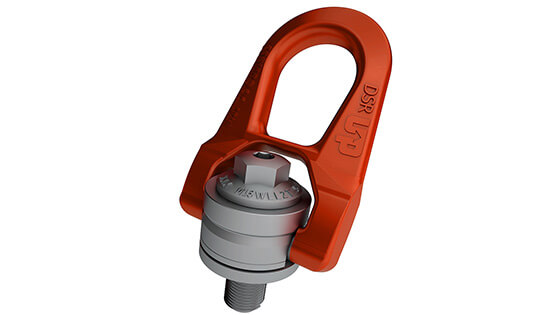

The DSR or OS.DSR offshore lifting ring is designed for simultaneously lifting and rotating loads. CODIPRO's technical sheet lists the DNV type-approved range: DSR (standard GRADUP, offshore applications, internal use) and OS.DSR (total zinc lamellar coating, offshore applications, external use) with identical references and ratings.
Key features
- Standard GRADUP lifting rings or with total zinc lamellar coating
- Metric and UNC threads: M 10 to M 30 - WLL from 0.70 t to 6.30 t
- UNC 3/8’’ to UNC 1’’ 1/4 - WLL from 1,300 lbs to 13,500 lbs
- Safety factor 4:1 and 5:1
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- DNVGL-ST-0378 type approval certificate N° TAS00001ZG
- Total zinc lamellar coating (OS.DSR)
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| OS.DSR M 10 UP | M 10 (x1.50) | 0.70 t | 0.90 t | 18 | 10 Nm | 0.3 |
| OS.DSR M 12 UP | M 12 (x1.75) | 1.05 t | 1.30 t | 21 | 15 Nm | 0.3 |
| OS.DSR M 16 UP | M 16 (x2) | 2.00 t | 2.30 t | 27 | 50 Nm | 0.9 |
| OS.DSR M 20 3t2 UP | M 20 (x2.5) | 2.90 t | 3.20 t | 25 | 100 Nm | 2.6 |
| OS.DSR M 24 UP | M 24 (x3) | 4.40 t | 5.50 t | 36 | 160 Nm | 2.6 |
| OS.DSR M 30 6t3 UP | M 30 (x3.5) | 6.00 t | 6.30 t | 45 | 250 Nm | 2.7 |
| OS.DSR U 038 UP | UNC 3/8"-16 | 1,300 lbs | 1,600 lbs | 17 | 8 ft-lb | 0.3 |
| OS.DSR U 050 UP | UNC 1/2"-13 | 2,400 lbs | 2,800 lbs | 21 | 12 ft-lb | 0.3 |
| OS.DSR U 058 UP | UNC 5/8"-11 | 3,900 lbs | 4,900 lbs | 27 | 40 ft-lb | 0.9 |
| OS.DSR U 075 UP | UNC 3/4"-10 | 5,250 lbs | 5,250 lbs | 30 | 80 ft-lb | 0.9 |
| OS.DSR U 100 UP | UNC 1"-8 | 11,200 lbs | 12,500 lbs | 36 | 125 ft-lb | 2.6 |
| OS.DSR U 125 UP | UNC 1" 1/4-7 | 13,500 lbs | 13,500 lbs | 45 | 200 ft-lb | 2.7 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- DNVGL-ST-0378 type approval, certificate N° TAS00001ZG
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
