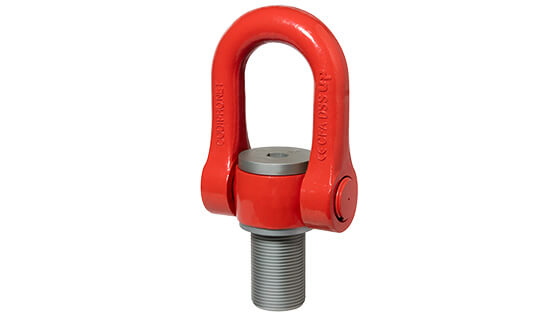

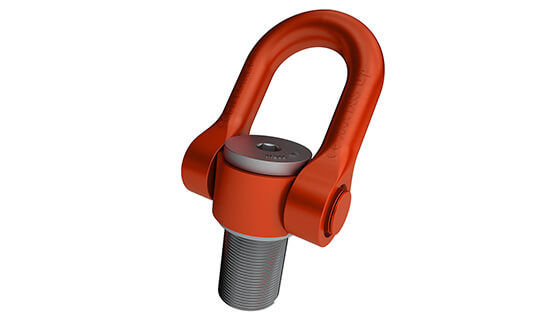

CODIPRO MEGA.DSS+ Double Swivel Lifting Ring (GRADUP, M64-M100 / UNC 2 3/4"-4", WLL 30-70 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The MEGA.DSS+ is the heavy-load member of the DSS family, built on GRADUP technology for rotations under load.
Key features
- Metric and UNC threads: M 64 to M 100 - WLL from 30 t to 70 t
- UNC 2’’3/4 to UNC 4″ - WLL from 66,000 lbs to 154,000 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| MEGA.DSS+ M 64 UP | M 64 (x6) | 30.00 t | 35.00 t | 100 | 600 Nm | 42.0 |
| MEGA.DSS+ M 72 UP | M 72 (x6) | 35.00 t | 40.00 t | 110 | 700 Nm | 43.0 |
| MEGA.DSS+ M 72x4 UP | M 72 (x4) | 35.00 t | 40.00 t | 110 | 700 Nm | 43.0 |
| MEGA.DSS+ M 80 UP | M 80 (x6) | 40.00 t | 50.00 t | 120 | 800 Nm | 44.5 |
| MEGA.DSS+ M 90 UP | M 90 (x6) | 50.00 t | 60.00 t | 135 | 900 Nm | 46.5 |
| MEGA.DSS+ M 100 UP | M 100 (x6) | 60.00 t | 70.00 t | 150 | 1000 Nm | 49.0 |
| MEGA.DSS+ U 275 UP | UNC 2’’ 3/4-4 | 66,000 lbs | 77,000 lbs | 105 | 520 ft-lb | 42.5 |
| MEGA.DSS+ U 300 UP | UNC 3" -4 | 77,000 lbs | 88,000 lbs | 115 | 520 ft-lb | 43 |
| MEGA.DSS+ U 325 UP | UNC 3’’ 1/4-4 | 88,000 lbs | 110,000 lbs | 125 | 590 ft-lb | 44.5 |
| MEGA.DSS+ U 350 UP | UNC 3" 1/2-4 | 88,000 lbs | 110,000 lbs | 135 | 665 ft-lb | 46 |
| MEGA.DSS+ U 375 UP | UNC 3’’ 3/4-4 | 110,000 lbs | 132,000 lbs | 145 | 740 ft-lb | 47 |
| MEGA.DSS+ U 400 UP | UNC 4" -4 | 132,000 lbs | 154,000 lbs | 150 | 740 ft-lb | 49 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
