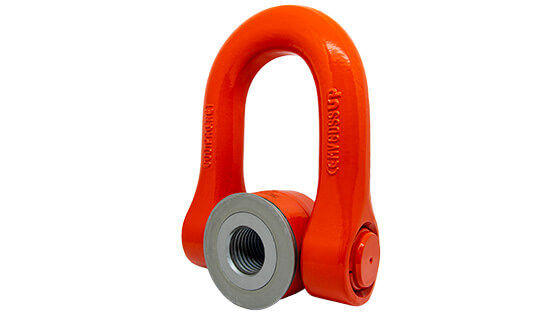

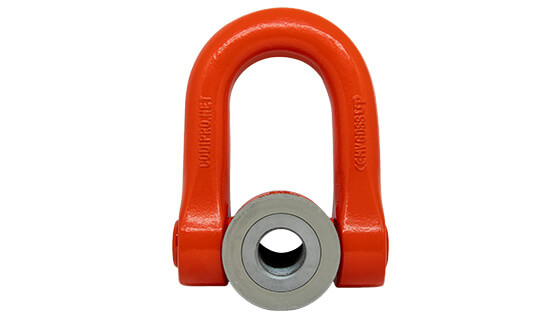

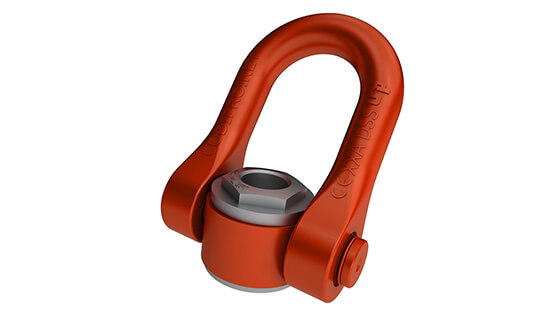

CODIPRO FE.DSS Female Universal Double Swivel Lifting Ring (GRADUP, M24-M52 / UNC 1"-2", WLL 4.5-21 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The FE.DSS is the female version of the DSS universal ring. Also available as male (DSS) and stainless steel (SS.FE.DSS).
Key features
- Standard metric and UNC threads available M 24 to M 52 - WLL from 4.50 t to 21.00 t
- UNC 1’’ to UNC 2″ - WLL from 10,000 lbs to 50,000 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L max (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| FE.DSS M 24 UP | M 24 (x3) | 4.50 t | 5.50 t | 66 | 160 Nm | 5.1 |
| FE.DSS M 27 UP | M 27 (x3) | 5.20 t | 6.50 t | 66 | 200 Nm | 5.1 |
| FE.DSS M 30 UP | M 30 (x3,5) | 7.50 t | 8.50 t | 66 | 250 Nm | 5.1 |
| FE.DSS M 33 UP | M 33 (x3,5) | 8.00 t | 10.50 t | 66 | 250 Nm | 5.1 |
| FE.DSS M 36 UP | M 36 (x4) | 10.00 t | 12.00 t | 66 | 320 Nm | 5.1 |
| FE.DSS M 39 UP | M 39 (x4) | 12.00 t | 14.00 t | 89 | 320 Nm | 10.0 |
| FE.DSS M 42 UP | M 42 (x4,5) | 13.00 t | 15.00 t | 89 | 400 Nm | 10.0 |
| FE.DSS M 45 UP | M 45 (x4,5) | 14.50 t | 16.00 t | 89 | 400 Nm | 10.0 |
| FE.DSS M 48 UP | M 48 (x5) | 17.00 t | 20.00 t | 89 | 600 Nm | 10.0 |
| FE.DSS M 52 UP | M 52 (x5) | 19.00 t | 21.00 t | 89 | 600 Nm | 10.0 |
| FE.DSS U 100 UP | UNC 1’’-8 | 10,000 lbs | 13,000 lbs | 66 | 125 ft-lb | 5.1 |
| FE.DSS U 125 UP | UNC 1" 1/4-7 | 15,000 lbs | 19,000 lbs | 66 | 200 ft-lb | 5.1 |
| FE.DSS U 138 UP | UNC 1" 3/8-6 | 21,000 lbs | 22,000 lbs | 66 | 240 ft-lb | 5.1 |
| FE.DSS U 150 UP | UNC 1" 1/2-6 | 22,000 lbs | 27,000 lbs | 89 | 240 ft-lb | 10 |
| FE.DSS U 200 UP | UNC 2’’-4,5 | 38,000 lbs | 50,000 lbs | 89 | 450 ft-lb | 10 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
