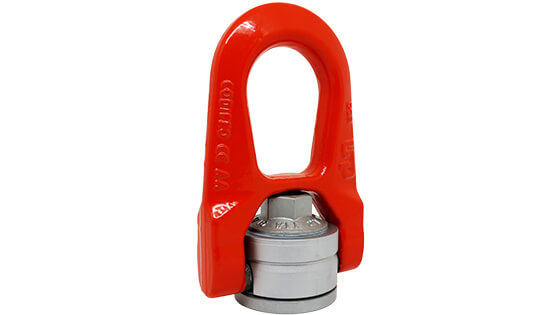

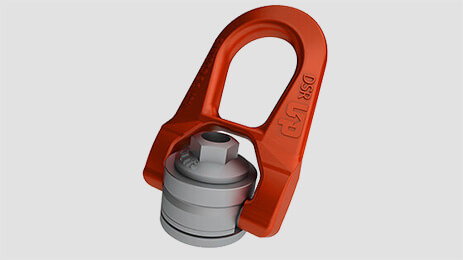

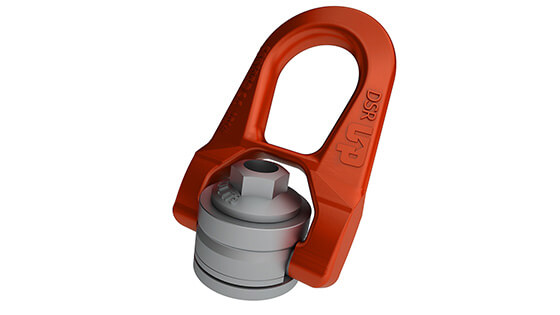

CODIPRO FE.DSR Female Double Swivel Lifting Ring (GRADUP, M8-M22 / UNC 1/4"-7/8", WLL 0.4-4.5 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The FE.DSR is the female-thread version of the DSR double swivel ring: it screws onto a stud or threaded bar instead of into a tapped hole. Also available as male (DSR) and stainless steel (SS.FE.DSR).
Key features
- Metric and UNC threads: M 8 to M 22 - WLL from 0.04 t to 4.50 t
- UNC 1/4'' to UNC 7/8'' - WLL from 330 lbs to 9,800 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
- Female thread (M-6G / UNC-2A stud)
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L max (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| FE.DSR M 8 UP | M 8 (x1,25) | 0.40 t | 0.50 t | 45 | 6 Nm | 0.9 |
| FE.DSR M 10 UP | M 10 (x1,5) | 0.70 t | 0.90 t | 45 | 10 Nm | 0.9 |
| FE.DSR M 12 UP | M 12 (x1,75) | 1.05 t | 1.30 t | 45 | 15 Nm | 0.9 |
| FE.DSR M 14 UP | M 14 (x2) | 1.40 t | 1.80 t | 45 | 30 Nm | 0.9 |
| FE.DSR M 16 UP | M 16 (x2) | 2.00 t | 2.30 t | 45 | 50 Nm | 0.9 |
| FE.DSR M 18 UP | M 18 (x2,5) | 2.30 t | 2.30 t | 62 | 70 Nm | 2.6 |
| FE.DSR M 20 UP | M 20 (x2,5) | 2.50 t | 2.50 t | 62 | 100 Nm | 2.6 |
| FE.DSR M 22 UP | M 22 (x2,5) | 3.50 t | 4.50 t | 62 | 120 Nm | 2.6 |
| FE.DSR U 025 UP | UNC 1/4’’-20 | 330 lbs | 450 lbs | 45 | 3 ft-lb | 0.9 |
| FE.DSR U 516 UP | UNC 5/16’’-18 | 1,000 lbs | 1,200 lbs | 45 | 5 ft-lb | 0.9 |
| FE.DSR U 038 UP | UNC 3/8"-16 | 1,300 lbs | 1,600 lbs | 45 | 8 ft-lb | 0.9 |
| FE.DSR U 050 UP | UNC 1/2"-13 | 2,400 lbs | 2,800 lbs | 45 | 12 ft-lb | 0.9 |
| FE.DSR U 058 UP | UNC 5/8"-11 | 3,900 lbs | 4,900 lbs | 45 | 40 ft-lb | 0.9 |
| FE.DSR U 075 UP | UNC 3/4"-10 | 5,250 lbs | 5,250 lbs | 62 | 80 ft-lb | 2.6 |
| FE.DSR U 078 UP | UNC 7/8"-9 | 7,900 lbs | 9,800 lbs | 62 | 90 ft-lb | 2.6 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
