CODIPRO DSS Universal Double Swivel Shackle Lifting Ring (GRADUP, M24-M100 / UNC 1"-2 1/2", WLL 4.5-32.1 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

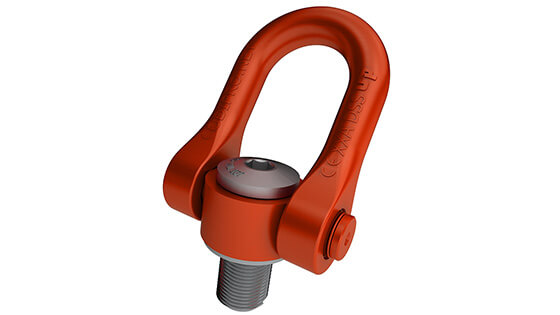

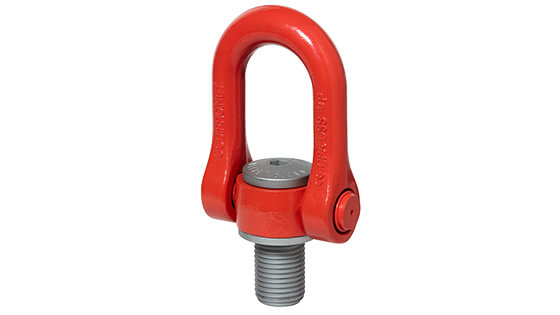

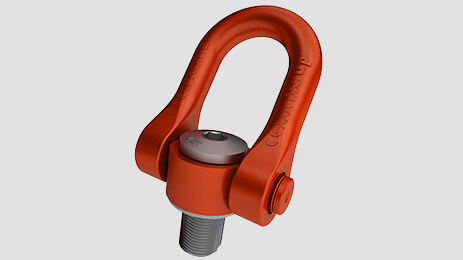

The DSS universal lifting ring is a double swivel ring built for rotations under load at higher capacities. The double swivel ensures perfect alignment with the sling for straight, angled, tilting and turning lifts. Also available as female (FE.DSS), stainless steel (SS.DSS), 8UN, long-bolt, offshore and weld-on (WE.DSS) versions.
Key features
- Metric and UNC threads: M 24 to M 100 - WLL from 4.50 t to 32.10 t
- UNC 1’’ to UNC 2″1/2 - WLL from 10,000 lbs to 55,000 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
- Wide range of fine-pitch metric threads
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| DSS U 100 UP | UNC 1’’-8 | 10,000 lbs | 13,000 lbs | 36 | 125 ft-lb | 5.4 |
| DSS U 125 UP | UNC 1" 1/4-7 | 15,000 lbs | 19,000 lbs | 45 | 200 ft-lb | 5.4 |
| DSS U 138 UP | UNC 1" 3/8-6 | 21,000 lbs | 22,000 lbs | 54 | 240 ft-lb | 5.4 |
| DSS U 150 UP | UNC 1" 1/2-6 | 22,000 lbs | 27,000 lbs | 54 | 240 ft-lb | 5.4 |
| DSS U 175 UP | UNC 1" 3/4-5 | 27,000 lbs | 33,000 lbs | 63 | 300 ft-lb | 5.9 |
| DSS U 200 UP | UNC 2"-4,5 | 38,000 lbs | 50,000 lbs | 76 | 450 ft-lb | 11.1 |
| DSS U 250 UP | UNC 2" 1/2-4 | 48,500 lbs | 55,000 lbs | 90 | 450 ft-lb | 12.2 |
| DSS M 24 UP | M 24 (x3) | 4.50 t | 5.50 t | 36 | 160 Nm | 5.4 |
| DSS M 30 UP | M 30 (x3,5) | 7.70 t | 8.50 t | 45 | 250 Nm | 5.5 |
| DSS M 33 UP | M 33 (x3,5) | 8.50 t | 10.50 t | 50 | 250 Nm | 5.5 |
| DSS M 36 UP | M 36 (x4) | 11.00 t | 12.00 t | 54 | 320 Nm | 5.5 |
| DSS M 36x3 UP | M 36 (x3) | 11.00 t | 12.00 t | 54 | 320 Nm | 5.5 |
| DSS M 39 UP | M 39 (x4) | 12.00 t | 14.00 t | 58 | 320 Nm | 5.7 |
| DSS M 42 UP | M 42 (x4,5) | 13.00 t | 15.00 t | 63 | 400 Nm | 5.8 |
| DSS M 42x3 UP | M 42 (x3) | 13.00 t | 15.00 t | 63 | 400 Nm | 5.8 |
| DSS M 45 UP | M 45 (x4,5) | 14.50 t | 16.00 t | 63 | 400 Nm | 5.9 |
| DSS M 48 UP | M 48 (x5) | 17.00 t | 20.00 t | 68 | 600 Nm | 11.0 |
| DSS M 48x3 UP | M 48 (x3) | 17.00 t | 20.00 t | 68 | 600 Nm | 11.0 |
| DSS M 48x4 UP | M 48 (x4) | 17.00 t | 20.00 t | 68 | 600 Nm | 11.0 |
| DSS M 52 UP | M 52 (x5) | 19.00 t | 21.00 t | 68 | 600 Nm | 11.2 |
| DSS M 56 UP | M 56 (x5,5) | 22.00 t | 25.00 t | 78 | 600 Nm | 11.3 |
| DSS M 56x4 UP | M 56 (x4) | 22.00 t | 25.00 t | 78 | 600 Nm | 11.4 |
| DSS M 64 UP | M 64 (x6) | 25.00 t | 32.10 t | 90 | 600 Nm | 12.2 |
| DSS M 64x4 UP | M 64 (x4) | 25.00 t | 32.10 t | 90 | 600 Nm | 12.2 |
| DSS M 72 UP | M 72 (x6) | 22.00 t | 25.00 t | 90 | 600 Nm | 14.0 |
| DSS M 72x4 UP | M 72 (x4) | 22.00 t | 25.00 t | 90 | 600 Nm | 14.0 |
| DSS M 80 UP | M 80 (x6) | 25.00 t | 32.10 t | 90 | 600 Nm | 15.0 |
| DSS M 90 UP | M 90 (x6) | 25.00 t | 32.10 t | 90 | 600 Nm | 15.5 |
| DSS M 100 UP | M 100 (x6) | 25.00 t | 32.10 t | 90 | 600 Nm | 16.5 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
