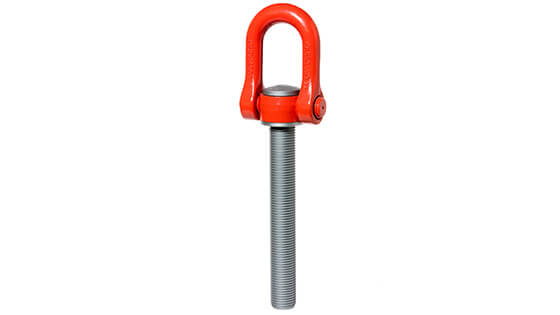

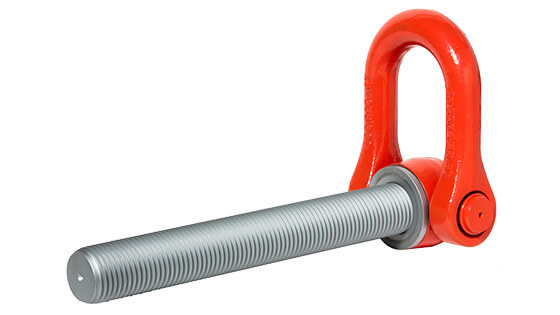

CODIPRO DSS Universal Double Swivel Lifting Ring with Long Bolt (GRADUP, L1 300-500 mm)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
Long-bolt version of the DSS universal ring.
Key features
- Long bolt available and produced in a very short time
- Metric threads available: M24 to M64 - L1=300mm to 500mm
- UNC threads available: 1’’ UNC to 1’’1/2 UNC – L1=10’’ to 12’’
- Swiveling under load
- 360° rotation - 180° swivel
- Safety factor 4:1 and 5:1
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
Range
| Thread | Bolt length L1 |
|---|---|
| Metric M24 to M64 | 300 mm to 500 mm |
| UNC 1" to 1 1/2" | 10" to 12" |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
