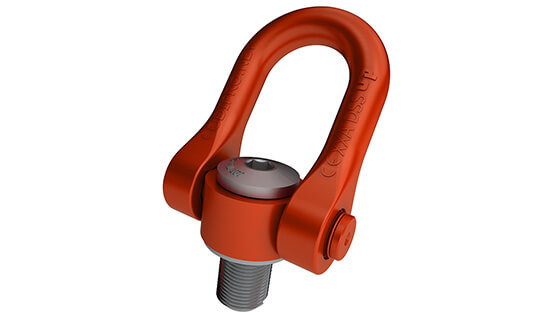

CODIPRO DSS 8UN Universal Double Swivel Lifting Ring (GRADUP, 8UN 1 1/8"-2", WLL 11,000-50,000 lbs)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The DSS 8UN is the DSS universal ring with 8-thread-per-inch UN threads.
Key features
- 8UN thread available: 1''1/8’’ to 2’’ - WLL from 11,000 lbs to 50,000 lbs
- Safety factor 4:1 and 5:1
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| DSS U 118 8UN | UN 1" 1/8-8 | 11,000 lbs | 11,000 lbs | 45 | 150 ft-lb | 5.4 |
| DSS U 125 8UN | UN 1" 1/4-8 | 14,000 lbs | 14,000 lbs | 45 | 200 ft-lb | 5.4 |
| DSS U 138 8UN | UN 1" 3/8-8 | 20,000 lbs | 20,000 lbs | 54 | 240 ft-lb | 5.4 |
| DSS U 150 8UN | UN 1" 1/2-8 | 20,000 lbs | 20,000 lbs | 54 | 240 ft-lb | 5.4 |
| DSS U 175 8UN | UN 1" 3/4-8 | 27,000 lbs | 27,000 lbs | 63 | 300 ft-lb | 5.9 |
| DSS U 200 8UN | UN 2"-8 | 50,000 lbs | 50,000 lbs | 76 | 450 ft-lb | 11.1 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
