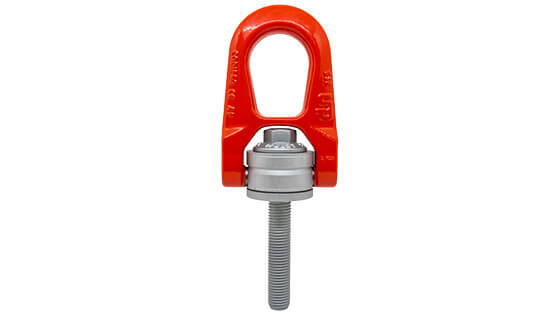

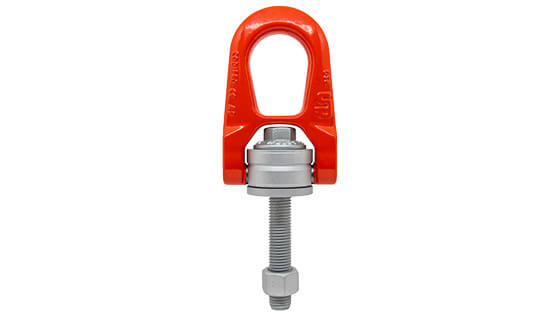

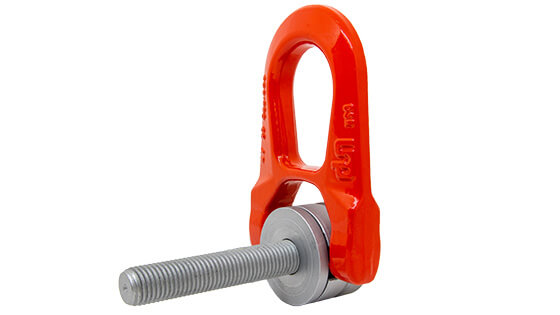

CODIPRO DSR Double Swivel Lifting Ring with Long Bolt (GRADUP, L1 300-500 mm)

Long-bolt version of the DSR for applications where the standard bolt length L1 is not sufficient.

Key features

• Long bolt available and produced in a very short time.
• Metric threads available: M24 to M64 - L1=300mm to 500mm
• UNC threads available: 3/8’’ UNC to 3/4 UNC – L1=8’’ to 10’’
• Swiveling under load
• 360° rotation - 180° swivel
• Safety factor 4:1 and 5:1
• Complies with the Machinery Directive 2006/42/EC
• Manufactured in compliance with the EN 1677-1 norm
• Individual traceability number
• GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
• Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
• Tightening torque, CE marking and WLL engraved on every ring
• Designed for use from -20 °C to +200 °C

Range

Thread/length combinations as published on codipro.net; confirm the exact reference with the technical department.

Standards & certificates

• Machinery Directive 2006/42/EC
• Manufactured in compliance with EN 1677-1
• Manufactured in compliance with the REACH regulation
• Individual traceability number on every ring
• GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
• Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)

Supply in Saudi Arabia

CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.

Manufacturer information: www.codipro.net
