CODIPRO DSR Double Swivel Lifting Ring (GRADUP, M5-M42 / UNC 1/4"-1 1/4", WLL 0.07-9 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

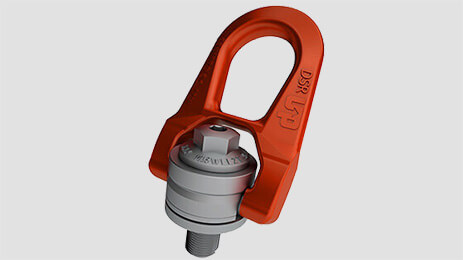

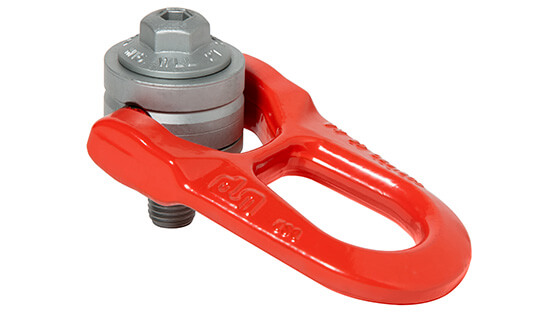

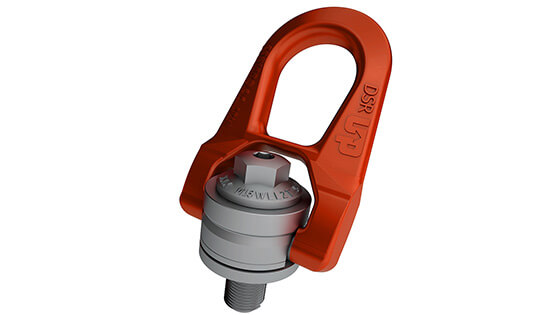

The DSR is CODIPRO's double swivel lifting ring. Its double swivel keeps the ring aligned with the sling, so it can be used for straight lifts, angled lifts, tilting and turning loads. It has a protective crossbar and carries CE, WLL and tightening-torque markings. Also available as female (FE.DSR), stainless steel (SS.DSR), quick-lift (QL.DSR), long-bolt, offshore and weld-on versions.
Key features
- Metric and UNC threads: M 5 to M 42 - WLL from 0.07 t to 9.00 t
- UNC 1/4'' to UNC 1″1/4 - WLL from 330 lbs to 13,500 lbs
- Safety factor 4:1 and 5:1
- Swiveling under load
- 360° rotation - 180° swivel
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
- GRADUP optimised raw material: up to 11 % higher WLL (23 % in safety factor 4)
- Anti-corrosion coating: unpainted parts resist 600 hours of salt-mist spray
- Tightening torque, CE marking and WLL engraved on every ring
- Designed for use from -20 °C to +200 °C
- Protective crossbar; approved for all lifting configurations from 0° to 90°
Range
| Reference | Thread | WLL SF 5:1 | WLL SF 4:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|---|
| DSR M 5 UP | M 5 (x0,8) | 0.07 t | 0.10 t | 15 | 3 Nm | 0.3 |
| DSR M 6 UP | M 6 (x1) | 0.15 t | 0.20 t | 15 | 4 Nm | 0.3 |
| DSR M 8 UP | M 8 (x1,25) | 0.40 t | 0.50 t | 15 | 6 Nm | 0.3 |
| DSR M 10 UP | M 10 (x1,5) | 0.70 t | 0.90 t | 18 | 10 Nm | 0.3 |
| DSR M 12 UP | M 12 (x1,75) | 1.05 t | 1.30 t | 21 | 15 Nm | 0.3 |
| DSR M12 1t2 UP | M 12 (x1.75) | 1.20 t | 1.50 t | 21 | 15 Nm | 0.9 |
| DSR M 14 UP | M 14 (x2) | 1.40 t | 1.80 t | 23 | 30 Nm | 0.9 |
| DSR M 16 UP | M 16 (x2) | 2.00 t | 2.30 t | 27 | 50 Nm | 0.9 |
| DSR M 18 UP | M 18 (x2,5) | 2.30 t | 2.30 t | 27 | 70 Nm | 0.9 |
| DSR M 20 2t5 UP | M 20 (x2,5) | 2.50 t | 2.50 t | 30 | 100 Nm | 0.9 |
| DSR M 20 3t2 UP | M 20 (x2,5) | 2.90 t | 3.20 t | 25 | 100 Nm | 2.6 |
| DSR M 22 UP | M 22 (x2,5) | 3.50 t | 4.50 t | 33 | 120 Nm | 2.6 |
| DSR M 24 UP | M 24 (x3) | 4.40 t | 5.50 t | 36 | 160 Nm | 2.6 |
| DSR M 27 UP | M 27 (x3) | 5.70 t | 6.00 t | 40 | 200 Nm | 2.7 |
| DSR M 30 6t3 UP | M 30 (x3,5) | 6.00 t | 6.30 t | 45 | 250 Nm | 2.7 |
| DSR M 30 8t UP | M 30 (x3,5) | 6.70 t | 8.00 t | 45 | 250 Nm | 5.4 |
| DSR M 36 UP | M 36 (x4) | 8.00 t | 8.50 t | 54 | 320 Nm | 5.4 |
| DSR M 42 UP | M 42 (x4,5) | 8.50 t | 9.00 t | 63 | 400 Nm | 5.5 |
| DSR U 025 UP | UNC 1/4’’-20 | 330 lbs | 450 lbs | 13 | 3 ft-lb | 0.3 |
| DSR U 516 UP | UNC 5/16’’-18 | 1,000 lbs | 1,200 lbs | 15 | 5 ft-lb | 0.3 |
| DSR U 038 UP | UNC 3/8"-16 | 1,300 lbs | 1,600 lbs | 17 | 8 ft-lb | 0.3 |
| DSR U 050 UP | UNC 1/2"-13 | 2,400 lbs | 2,800 lbs | 21 | 12 ft-lb | 0.3 |
| DSR U 058 UP | UNC 5/8"-11 | 3,900 lbs | 4,900 lbs | 27 | 40 ft-lb | 0.9 |
| DSR U 075 UP | UNC 3/4"-10 | 5,250 lbs | 5,250 lbs | 30 | 80 ft-lb | 0.9 |
| DSR U 078 UP | UNC 7/8"-9 | 7,900 lbs | 9,800 lbs | 33 | 90 ft-lb | 2.5 |
| DSR U 100 UP | UNC 1"-8 | 11,200 lbs | 12,500 lbs | 36 | 125 ft-lb | 2.6 |
| DSR U 118 UP | UNC 1" 1/8-7 | 11,500 lbs | 13,000 lbs | 42 | 160 ft-lb | 2.6 |
| DSR U 125 UP | UNC 1" 1/4-7 | 13,500 lbs | 13,500 lbs | 45 | 200 ft-lb | 2.7 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- GRADUP range: CODIPRO 7-year manufacturer's warranty, requested via the CODITRACER traceability tool, covering standard references manufactured from 1 January 2020
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
