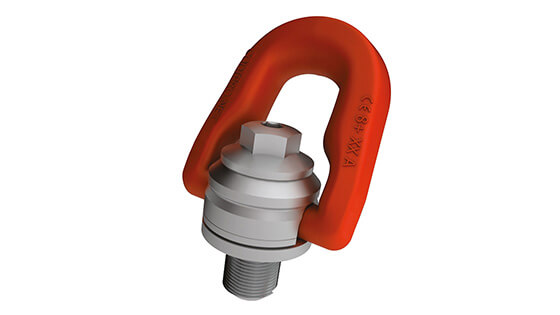

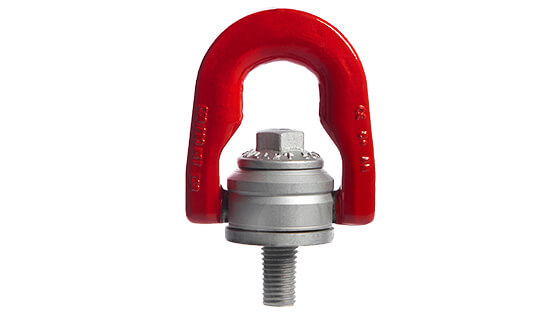

CODIPRO DSP Double Swivel Lifting Point (M8-M20 / UNC 5/16"-3/4", WLL 0.4-2.5 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The DSP double swivel lifting point offers the possibility of adapting other lifting accessories. It carries CE, WLL and tightening-torque markings.
Key features
- Metric and UNC threads: M 8 to M 20 - WLL from 0.40 t to 2.50 t
- UNC 5/16″ to UNC 3/4″ - WLL from 1,000 lbs to 5,250 lbs
- Safety factor 5:1
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
Range
| Reference | Thread | WLL SF 5:1 | L1 (mm) | Tightening torque | Weight (kg) |
|---|---|---|---|---|---|
| DSP M 8 | M 8 (x1,25) | 0.40 t | 15 | 6 Nm | 0.3 |
| DSP M 10 | M 10 (x1,50) | 0.70 t | 18 | 10 Nm | 0.3 |
| DSP M 12 | M 12 (x1,75) | 1.05 t | 21 | 15 Nm | 0.3 |
| DSP M 14 | M 14 (x2) | 1.40 t | 23 | 30 Nm | 0.9 |
| DSP M 16 | M 16 (x2) | 2.00 t | 27 | 50 Nm | 0.9 |
| DSP M 18 | M 18 (x2,5) | 2.30 t | 27 | 70 Nm | 1.0 |
| DSP M 20 | M 20 (x2,5) | 2.50 t | 30 | 100 Nm | 1.0 |
| DSP U 516 | UNC 5/16"-18 | 1,000 lbs | 15 | 7 ft-lb | 0.3 |
| DSP U 038 | UNC 3/8"-16 | 1,300 lbs | 18 | 8 ft-lb | 0.3 |
| DSP U 050 | UNC 1/2"-13 | 2,400 lbs | 21 | 12 ft-lb | 0.3 |
| DSP U 058 | UNC 5/8"-11 | 3,900 lbs | 27 | 40 ft-lb | 1 |
| DSP U 075 | UNC 3/4"-10 | 5,250 lbs | 30 | 80 ft-lb | 1 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
