CODIPRO CSS Central Safety Shackle Lifting Point (WLL 20 / 32 / 55 t)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

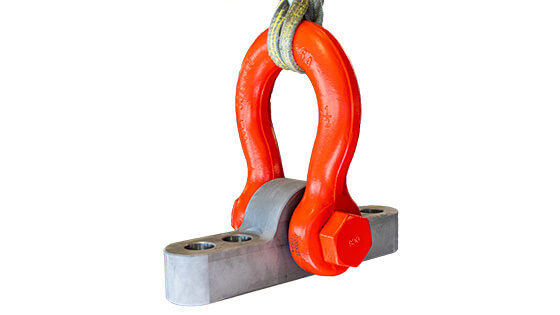

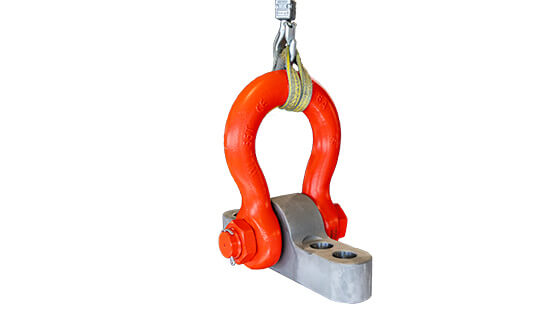

The CSS central lifting ring is designed for linear lifting and offers a wide space for the shackle to pass through. Drilling and fixing with DIN 912-12.9 screws, screws included.
Key features
- WLL of 20t – 32t – 55t
- Safety factor 4:1
- Drilling and fixing with screws DIN 912-12.9
- Screws included
- Complies with the Machinery Directive 2006/42/EC
- Manufactured in compliance with the EN 1677-1 norm
- In compliance with the REACH regulation
- Individual traceability number
Range
| Reference | WLL SF 4:1 (t) | Fixing screws (DIN 912-12.9, included) | Weight (kg) |
|---|---|---|---|
| CSS 20 | 20 | 2 x M36 x 100 | 12.7 |
| CSS 32 | 32 | 4 x M36 x 100 | 16.7 |
| CSS 55 | 55 | 4 x M48 x 160 | 90.0 |
Standards & certificates
- Machinery Directive 2006/42/EC
- Manufactured in compliance with EN 1677-1
- Manufactured in compliance with the REACH regulation
- Individual traceability number on every ring
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
