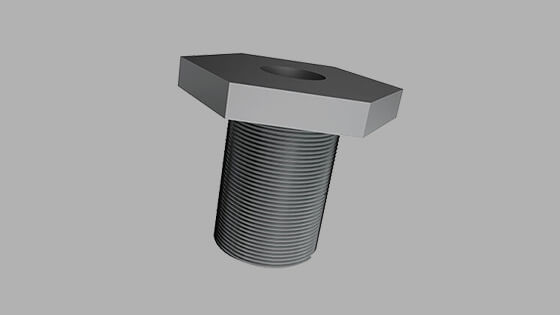

CODIPRO ADA Thread Adaptor for Swivel Lifting Rings (M24-M100 / UNC 7/8"-4")
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The ADA adapts perfectly to existing threads and thus avoids the use of an oversized lifting ring. Other variants are available on request.
Key features
- Available on the whole range
- Prevents oversizing
- Approved accessory

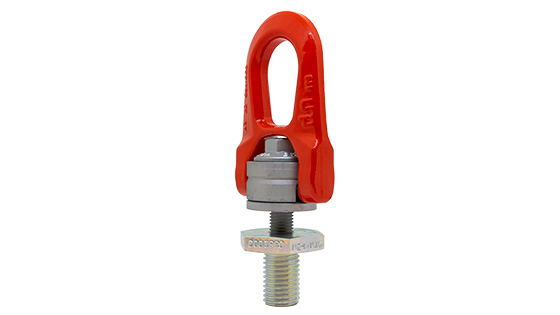

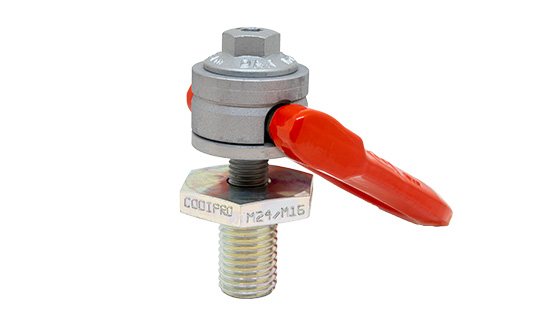

- WLL of the adaptor = WLL of the CODIPRO ring fitted
- For use exclusively with CODIPRO swivel lifting rings
Range
| Reference | External thread | Max. internal thread (M ISO / UNC) | L1 (mm) | Torque |
|---|---|---|---|---|
| ADA M 24 | M 24 (x3) | M 18 / 5/8" | 36 | 160 Nm |
| ADA M 30 | M 30 (x3.5) | M 20 / 7/8" | 45 | 250 Nm |
| ADA M 36 | M 36 (x4) | M 27 / 1" | 54 | 320 Nm |
| ADA M 42 | M 42 (x4.5) | M 33 / 1 1/4" | 63 | 400 Nm |
| ADA M 48 | M 48 (x5) | M 39 / 1 1/2" | 68 | 600 Nm |
| ADA M 56 | M 56 (x5.5) | M 42 / 1 3/4" | 78 | 600 Nm |
| ADA M 64 | M 64 (x6) | M 52 / 2" | 90 | 600 Nm |
| ADA M 100 | M 100 (x6) | M 80 / 3 1/2" | 100 | 600 Nm |
| ADA U 078 | UNC 7/8"-9 | M 16 / 5/8" | 33 | 90 ft-lb |
| ADA U 100 | UNC 1"-8 | M 18 / 3/4" | 36 | 125 ft-lb |
| ADA U 125 | UNC 1 1/4"-7 | M 24 / 7/8" | 45 | 200 ft-lb |
| ADA U 138 | UNC 1 3/8"-6 | M 27 / 1" | 54 | 240 ft-lb |
| ADA U 150 | UNC 1 1/2"-6 | M 30 / 1 1/8" | 61 | 240 ft-lb |
| ADA U 200 | UNC 2"-4 1/2 | M 39 / 1 1/2" | 68 | 450 ft-lb |
| ADA U 275 | UNC 2 3/4"-4 | M 56 / 2 1/4" | 90 | 520 ft-lb |
| ADA U 400 | UNC 4"-4 | M 80 / 3 1/4" | 100 | 740 ft-lb |
WLL of the adaptor = WLL of the CODIPRO lifting ring fitted on top. For use exclusively with CODIPRO swivel lifting rings. Other variants on request.
Standards & certificates
- Approved accessory for CODIPRO swivel lifting rings
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
