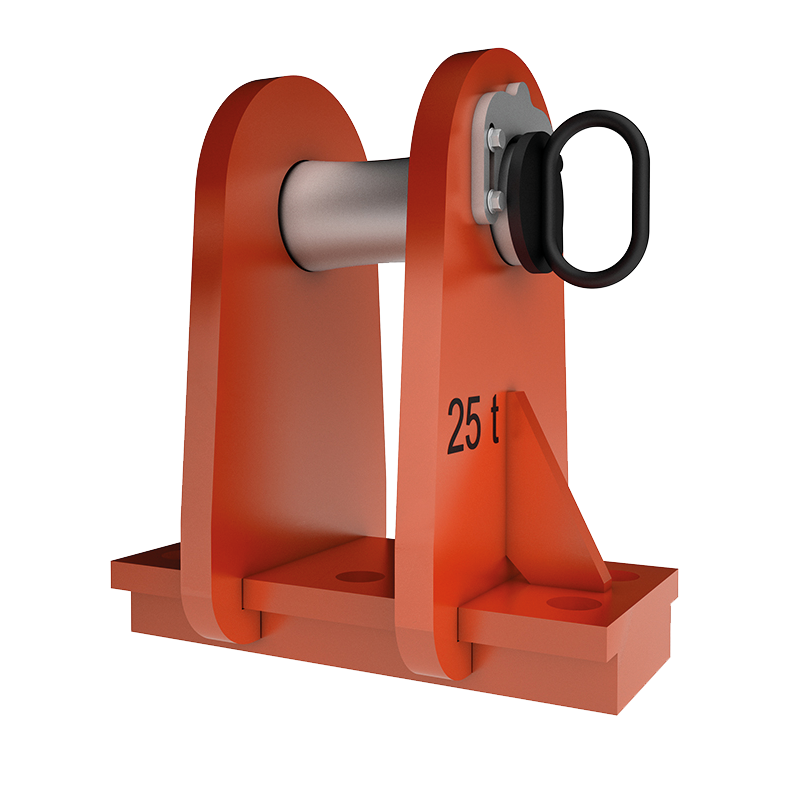

CODIPRO ELR Centralised Lifting System for Moulds (25 / 40 / 60 t, integrated RFID)
Made in Luxembourg
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
The ELR is a centralised lifting system for moulds with integrated RFID and a weld-free load-bearing design.
Key features
- WLL 25t - 40t - 60t
- Integrated RFID
- Designed and manufactured without structural welds
- Compliant with the DIN EN 13155:2003+A2:2009 standard
- Compliant with the Machinery Directive 2006/42/EC
- Optional hook centering plates
- Bolts not included in the supply
Range
| Reference | WLL (t) | Required socket cap screws (not supplied) | Weight (kg) |
|---|---|---|---|
| ELR 25 | 25 | 6 x M24 x 100 DIN 6912-10.9 or 6 x UNC 7/8" ANSI/ASME B18.3 10.9 | 102 |
| ELR 40 | 40 | 4 x M30 x 120 DIN 6912-10.9 or 4 x UNC 1 1/4" ANSI/ASME B18.3 10.9 | 146 |
| ELR 60 | 60 | 6 x M36 x 160 ISO 4762-10.9 or 6 x UNC 1 3/8" ANSI/ASME B18.3 10.9 | 192 |
Standards & certificates
- DIN EN 13155:2003+A2:2009
- Machinery Directive 2006/42/EC
- Integrated RFID
- Designed and manufactured by CODIPRO in Wiltz, Luxembourg (ISO 9001 / ISO 14001 logos shown on codipro.net)
Supply in Saudi Arabia
CODIPRO products are supplied in Saudi Arabia by West Velocity Company, Al Khobar - quotation, delivery across the Kingdom and the manufacturer's documentation and certificates on request. Ask for a quotation by email (info@west-velocity.com) or WhatsApp.
Manufacturer information: www.codipro.net
Datasheet / brochure: PDF
