STROVOLT Carbide Reamer — HCRM), Ø1–20
The STROVOLT Carbide Reamer (STV-RM-HCRM) is a complete solid tungsten-carbide carbide reamer line engineered for high-precision hole finishing. Straight shank, helical flute, high precision. Flute count 4 (Ø≤3) / 6 (Ø≥3.5). The full range of diameters and lengths is listed in the specification table below; simply choose the size you need when ordering. Every tool is precision CNC-ground and runs true and rigid for accurate, repeatable results and long tool life. Suitable for a wide range of materials including carbon and alloy steel, stainless steel, cast iron and non-ferrous alloys, on machining centres and CNC mills. Part of the STROVOLT solid-carbide tooling range stocked and supplied across Saudi Arabia with fast delivery to the Eastern Province and wider GCC. Order by STROVOLT part number STV-RM-HCRM or contact us for B2B accounts, bulk orders and custom sizes.

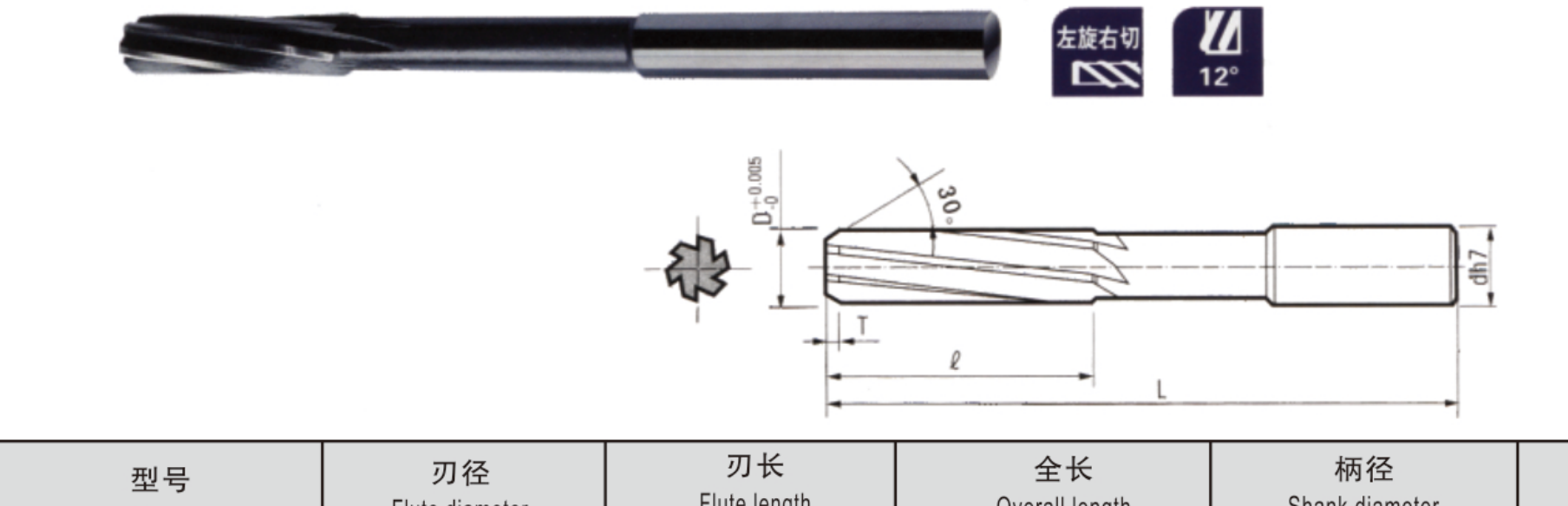

| D | flute ℓ | OAL L | shank d | Z |
|---|---|---|---|---|
| 1 | 6 | 34 | 1 | 4 |
| 1.5 | 8 | 38 | 1.5 | 4 |
| 2 | 11 | 49 | 2 | 4 |
| 2.5 | 14 | 57 | 2.5 | 4 |
| 3 | 15 | 61 | 3 | 4 |
| 3.5 | 18 | 70 | 3.5 | 6 |
| 4 | 19 | 75 | 4 | 6 |
| 4.5 | 21 | 80 | 4.5 | 6 |
| 5 | 23 | 86 | 5 | 6 |
| 5.5 | 26 | 93 | 5.5 | 6 |
| 6 | 26 | 93 | 6 | 6 |
| 6.5 | 28 | 101 | 6.5 | 6 |
| 7 | 31 | 109 | 7 | 6 |
| 7.5 | 31 | 109 | 7.5 | 6 |
| 8 | 33 | 117 | 8 | 6 |
| 8.5 | 33 | 117 | 8 | 6 |
| 9 | 36 | 125 | 9 | 6 |
| 9.5 | 36 | 125 | 9.5 | 6 |
| 10 | 38 | 133 | 10 | 6 |
| 10.5 | 38 | 133 | 10 | 6 |
| 11 | 41 | 142 | 10 | 6 |
| 11.5 | 41 | 142 | 12 | 6 |
| 12 | 44 | 151 | 12 | 6 |
| 12.5 | 44 | 151 | 12 | 6 |
| 14 | 47 | 160 | 14 | 6 |
| 14.5 | 50 | 162 | 14 | 6 |
| 15 | 50 | 162 | 15 | 6 |
| 16 | 52 | 170 | 16 | 6 |
| 18 | 56 | 182 | 18 | 6 |
| 20 | 60 | 195 | 20 | 6 |
Manufactured for STROVOLT. www.strovolt.com
