STROVOLT Carbide Drill — HKDI), Ø2.8–10.2

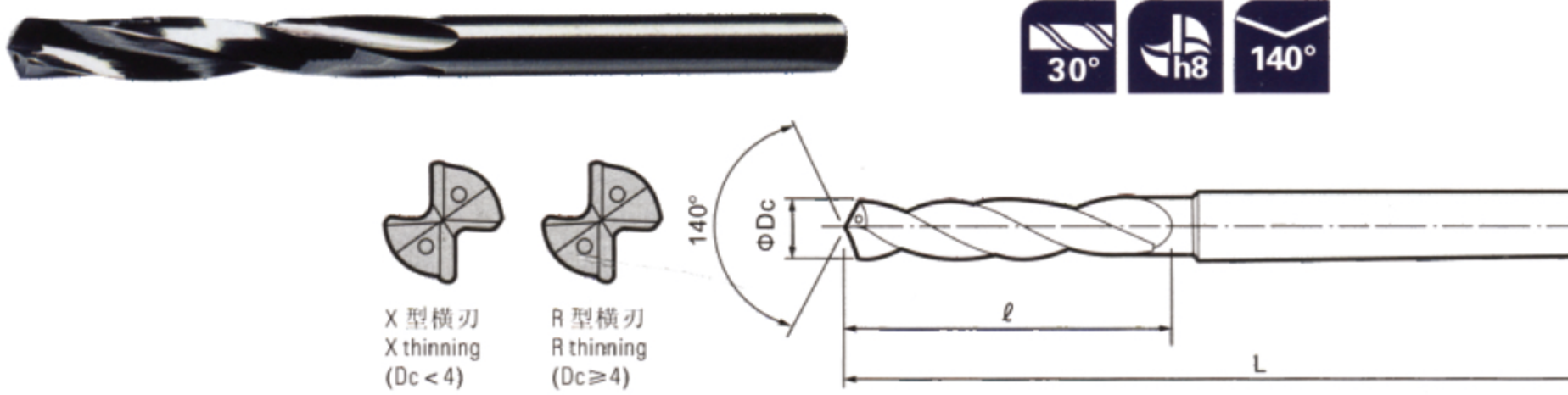

The STROVOLT Carbide Drill (STV-DR-HKDI) is a complete solid tungsten-carbide carbide drill line engineered for high-speed and deep-hole drilling. 140° point, 30° helix, internal coolant. Ø2.8–10.2 mm in 0.1 mm steps. The full range of diameters and lengths is listed in the specification table below; simply choose the size you need when ordering. Every tool is precision CNC-ground and runs true and rigid for accurate, repeatable results and long tool life. Suitable for a wide range of materials including carbon and alloy steel, stainless steel, cast iron and non-ferrous alloys, on machining centres and CNC mills. Part of the STROVOLT solid-carbide tooling range stocked and supplied across Saudi Arabia with fast delivery to the Eastern Province and wider GCC. Order by STROVOLT part number STV-DR-HKDI or contact us for B2B accounts, bulk orders and custom sizes.
| Dc range | flute ℓ | OAL L | shank d |
|---|---|---|---|
| 2.8–3.0 | 16 | 57 | 3 |
| 3.02–3.7 | 18–20 | 63 | 4 |
| 3.8–4.02 | 22 | 63 | 4 |
| 4.1–4.7 | 24 | 68 | 5 |
| 4.8–5.3 | 26 | 68 | 6 |
| 5.4–6.0 | 28 | 73 | 6 |
| 6.02–6.9 | 31 | 81 | 7 |
| 7.0–7.5 | 34 | 87 | 8 |
| 7.6–8.0 | 37 | 87 | 8 |
| 8.02–8.5 | 37 | 92 | 9 |
| 8.52–9.0 | 40 | 91 | 9 |
| 9.1–9.9 | 43 | 97 | 10 |
| 10.0–10.2 | 43 | 103 | 11 |
Manufactured for STROVOLT. www.strovolt.com
