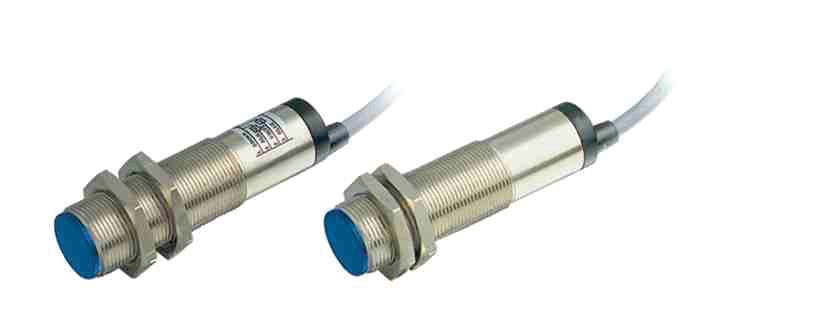

ePROX Photoelectric Sensor M18 Diffuse Reflective
Made in India
Contact for pricing
ePROX M18 cylindrical diffuse reflective photoelectric sensor from BCH Electric Limited. Sensing range 20 cm. 4-wire DC (1NO + 1NC) output (AC 2-wire on request), 12-30V DC, IP 67, LED indication. Housing: Nickel Plated Brass.
Specifications
| Sensing Range (Sn) | 20 cm |
| Size | M18 |
| Sensing Tolerance | ± 10% |
| Operating Frequency | 25 Hz |
| Supply Voltage | 12 - 30V DC |
| Hysteresis | ≤ 15% |
| Repeatability | ≤ 2% |
| Max. Output Current | 200 mA |
| Output Indication | LED |
| Leakage Current (Load) | Max. 10 µA |
| Operating Temperature | 0 to +55°C |
| Protection Degree | IP 67 |
| Reverse Polarity | Provided |
| Short Circuit | Provided |
| False Pulse | Provided |
| Transient Noise | Provided |
| Housing | Nickel Plated Brass |
| Marks | CE |
| Output | 4 Wire DC (1NO + 1NC) |
Ordering & Options
Ordering options (select when ordering): output type — PNP / NPN / DC 2-Wire / 220V AC / 110V AC (Namur on request); output configuration — NO / NC / 1NO+1NC (1NO+1NC not available on 2-wire DC/AC); connection — prewired 2 m cable, connector (K) or short length 45 mm (S). Applicable standards: IS-13947, EN-61000-3-3 & EN-61000-3-4, CSA-22.2 No. 14-95. Utilisation category DC-13 per IEC 60947-5-2.
