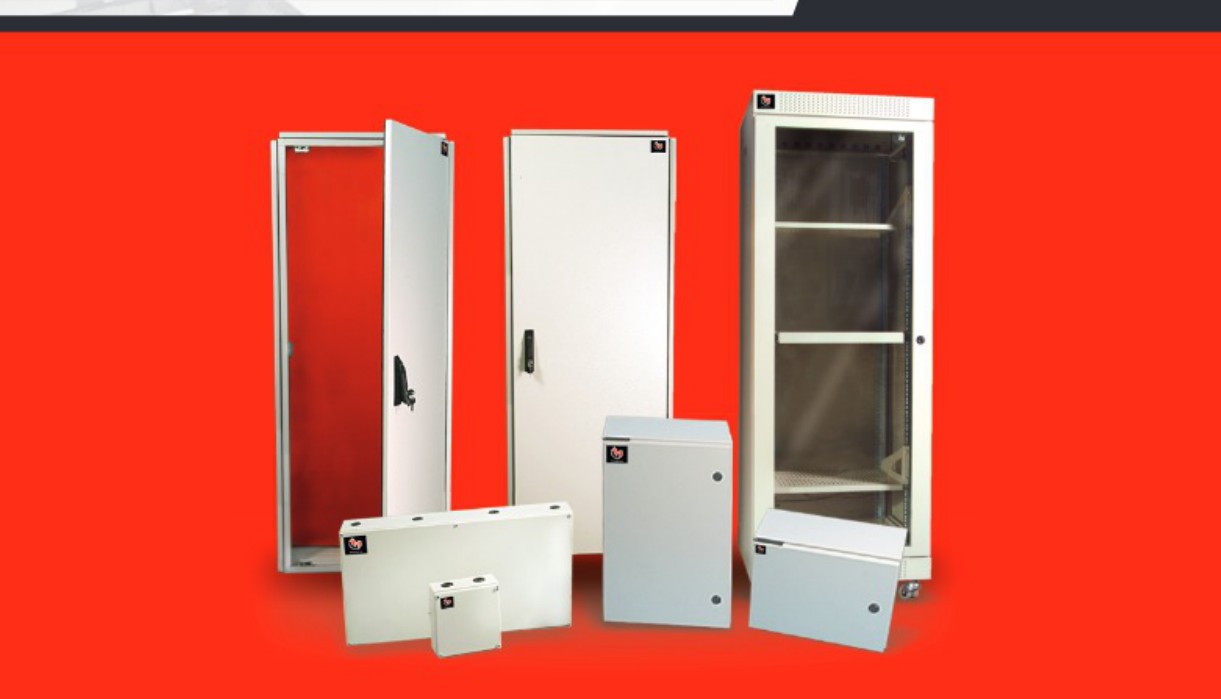

Bhartia Terminal Box IP55 (IK10)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
Bhartia terminal box, IP55 / IK10 — 43 standard variants. 1.2 mm CRCA steel, RAL 7035 powder coat, foamed-in PU gasket, screwed cover on top, with grommet cable-entry holes. Catalogue BIL-70xxx — specify size.
Specifications
| Protection | IP55 / IK10 |
| Standard Variants | 43 |
| Size Range (W x H x D) | 150 x 150 x 80 to 800 x 400 x 120 mm |
| Material | 1.2 mm CRCA sheet steel |
| Gasket | Foamed-in PU |
| Finish | Powder coated RAL 7035 |
| Cover | Screwed cover on top |
| Cable Entry | Holes with grommet (IP55) |
| Mounting | Two vertical mounting brackets standard; 4-bracket wall-mounting set as spare |
| Catalogue | BIL-70xxx series (per size table) |
