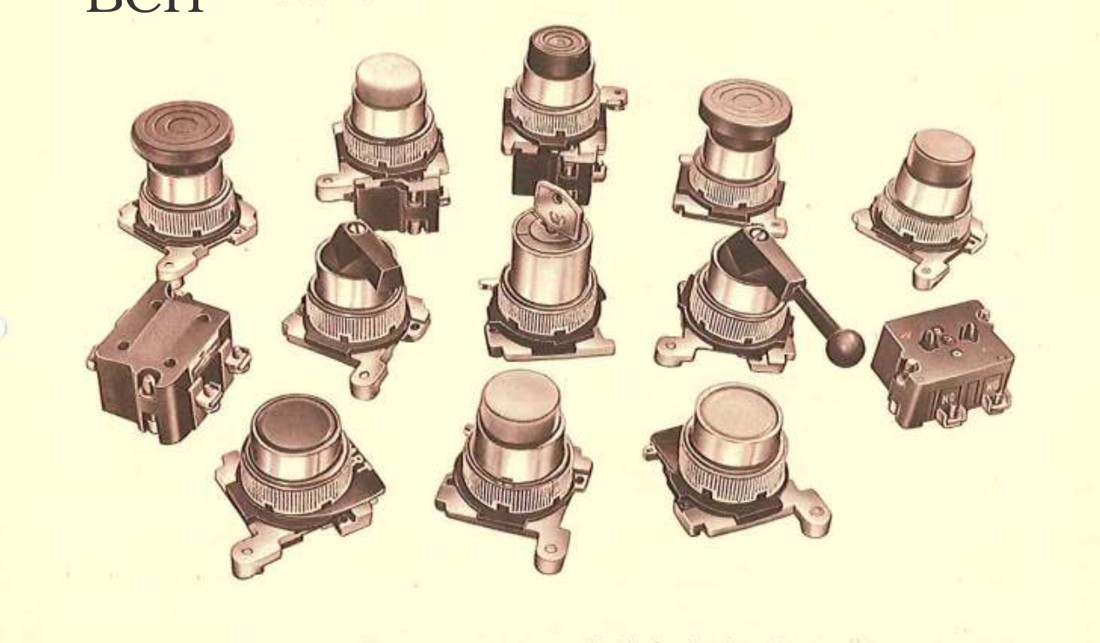

BCH TSSA Snap-Action Lever Selector Switch
Made in India
Contact for pricing
Available in Saudi Arabia
BCH TSSA snap-action lever operated selector switch (Type T) from BCH Electric Limited. Black lever, 2/3/4 positions, maintained or spring return. Order code e.g. TSSA2M1 = 2-position maintained, cam code 1.
Specifications
| Operator Type | Snap action lever operator selector switch |
| Product Code | TSSA |
| Positions | 2, 3 or 4 position |
| Function | Maintained (M) / Spring return (S/SL/SR) |
| Cam Codes | 1, 2-or-3, 7 (per position/function) |
| Example Order Code | TSSA2M1 (2-position maintained, cam code 1) |
| Series | Oil Tight Push Button, Type T (30.5 mm) |
| Utilisation Category | AC11 and DC11 (per IEC-337) |
| Thermal Current (Ith) | 10 A |
| Insulation Voltage (Ui) | 660 V AC or DC |
| AC11 Rating | 6.0A @120V · 3.0A @240V · 1.5A @480V · 1.2A @600V |
| DC11 Rating | 1.1A @125V · 0.55A @250V |
| Contact Combination | 1NO+1NC, 2NO or 2NC (max 4 contact blocks stackable) |
| Life of Operator | 1 × 10⁶ operations |
| Life of Contact Block | 10 × 10⁶ operations |
| Max. Permissible Ambient Temp. | 55 °C |
| Mounting | One hole mounting / Base mounting |
| Terminal Capacity | 2.5 mm² solid or stranded |
| Enclosure Category | Cast aluminium enclosure to IP-65 (IS-2147-1962) |
