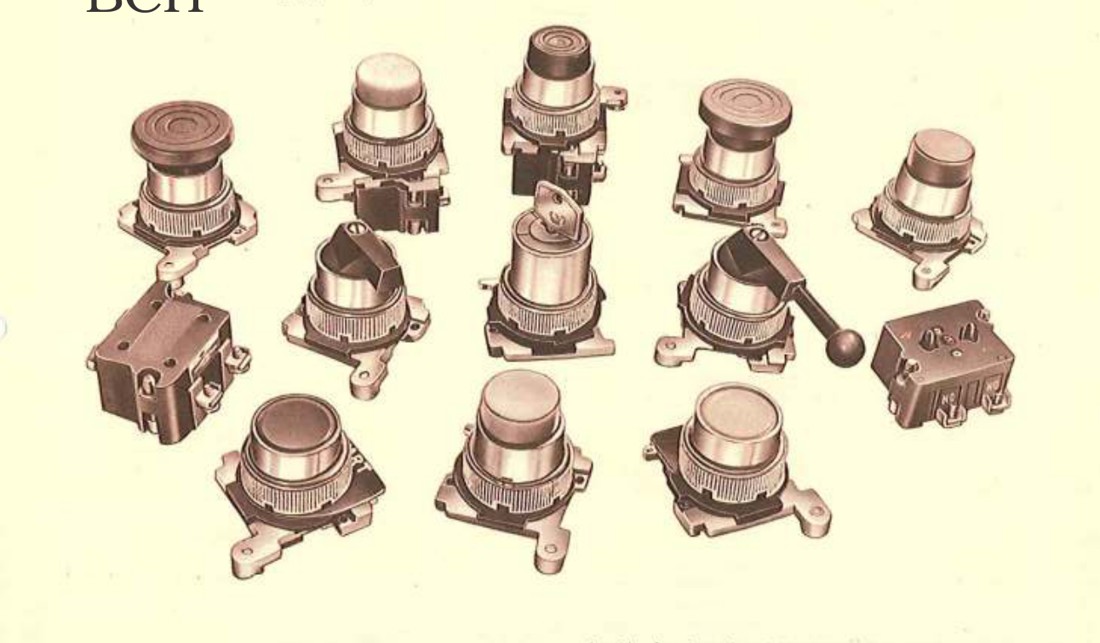

BCH TIPB Illuminated Oil Tight Push Button
Made in India
Contact for pricing
Available in Saudi Arabia
BCH TIPB illuminated oil-tight push button (Type T) from BCH Electric Limited — combines push button and pilot light in a single unit. Direct type for 6V/24V or transformer type for 110V/220V AC. Polystyrene extended-type lens for full visibility. Order code e.g. TIPBA (110V), TIPBP (6V).
Specifications
| Operator Code | TIPB |
| Function | Combined push button + pilot light |
| Voltage Codes | 110V-A, 220V-B, 6V-P, 24V-U |
| Lens Codes | Milkywhite-L31, Clear-L32, Yellow-L33, Blue-L34, Red-L35, Green-L36 |
| Bulb Rating | 6.3V 1.0 W (6V) / 24V 1.5 W |
| Type | Direct (6V/24V) or transformer (110V/220V) type |
| Lens | Polystyrene, extended type; colours red/green/yellow/blue/white/clear |
| Example Order Code | TIPBA (110V) · TIPBP (6V) · TIPBP with 6V bulb = TIPBP |
| Series | Oil Tight Push Button, Type T (30.5 mm) |
| Utilisation Category | AC11 and DC11 (per IEC-337) |
| Thermal Current (Ith) | 10 A |
| Insulation Voltage (Ui) | 660 V AC or DC |
| AC11 Rating | 6.0A @120V · 3.0A @240V · 1.5A @480V · 1.2A @600V |
| DC11 Rating | 1.1A @125V · 0.55A @250V |
| Contact Combination | 1NO+1NC, 2NO or 2NC (max 4 contact blocks stackable) |
| Life of Operator | 1 × 10⁶ operations |
| Life of Contact Block | 10 × 10⁶ operations |
| Max. Permissible Ambient Temp. | 55 °C |
| Mounting | One hole mounting / Base mounting |
| Terminal Capacity | 2.5 mm² solid or stranded |
| Enclosure Category | Cast aluminium enclosure to IP-65 (IS-2147-1962) |
