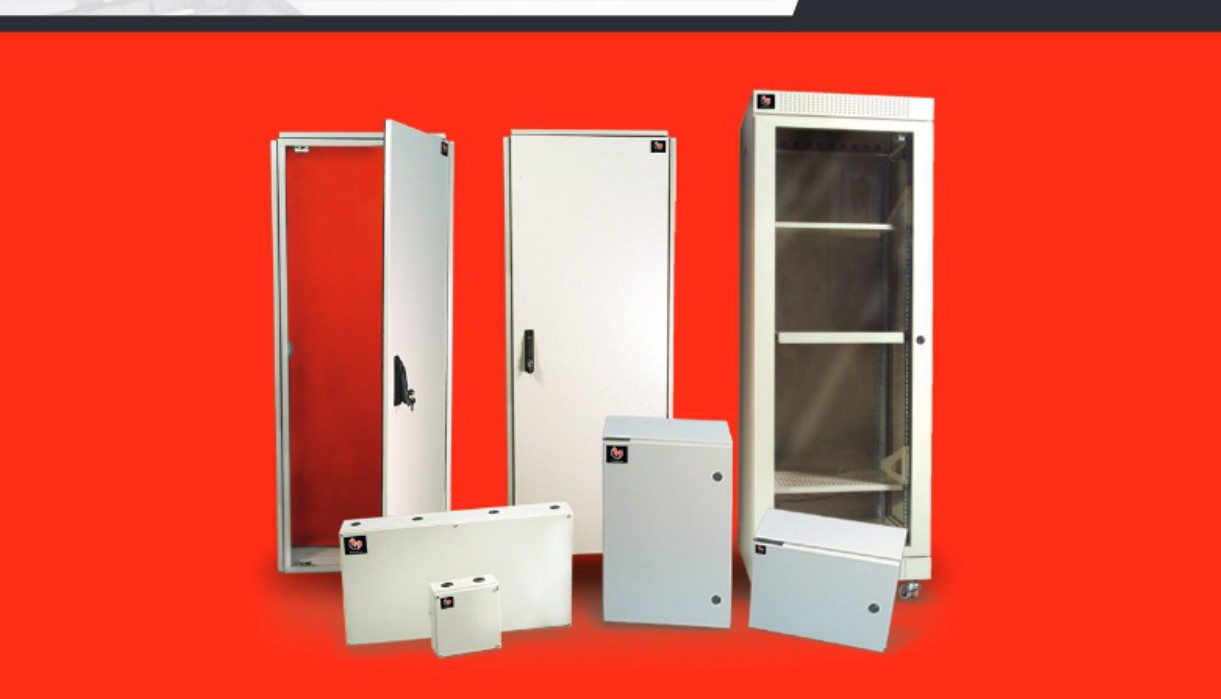

BCH TCE Series Enclosure
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH TCE Series — rigid, highly flexible modular floor-standing enclosure for industrial automation, drives and power transmission/distribution. IP66-IK10 (single door) / IP65-IK10 (double door), 25 mm hole pattern, depth-adjustable sliding mounting plate.
Specifications
| Protection | IP66-IK10 (single door) / IP65-IK10 (double door) |
| Frame | 2.0 mm painted steel |
| Door | 2.0 mm painted steel |
| Rear/Top/Side panes | 1.6 mm painted steel |
| Mounting Plate | 3.0 mm painted steel (3.0 mm GI on request) |
| Bottom Gland Plate | 2.0 mm galvanized steel |
| Finish | RAL-7035 enclosure; RAL-2000 mounting plate |
| Locking | 4-point locking; swing handle on LHS for double door |
| Features | Removable interchangeable doors/covers, bolted stiffener, 3-part gland plate, lifting eye bolt, optional 100 mm modular plinth |
