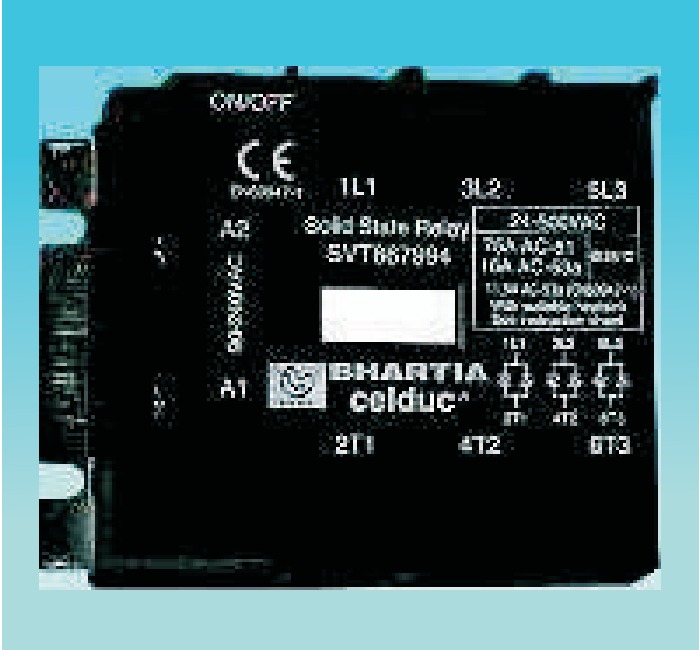

BCH SVT864994 Three Phase Solid State Relay (12A AC3, Zero-Cross)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH SVT series three phase solid state relay, 12A AC3 rating, zero-cross switching, main voltage 24-520 V RMS, AC control version (90-240V). IP20 with RC and VDR protection, 1.4 V on-state voltage drop and 1200V non-repetitive peak voltage. Electronic switching of the load with no contact bounce or arcing and long electrical life.
Specifications
| Cat Code | SVT864994 |
| Series | SVT |
| Phase | Three phase |
| AC3 Rating | 12 A |
| I²t (A²s) | 1500 |
| Non Repetitive Overload Current (@10ms) | 550 A |
| Off State Leakage Current (@Nominal Voltage, 50 Hz) | 5 mA |
| Control (AC version) | Control volt 90-240V, control current 3-11mA |
| Non-Repetitive Max. Peak Voltage | 1200V |
| Switching | Zero-Cross |
| Release Control Voltage | 4V |
| Main Voltage | 24-520 V RMS |
| On State Voltage Drop (@Nominal Current) | 1.4 Volts |
| Max. di/dt Non-Repetitive | 50 A/ms |
| Protection | IP20-RC and VDR protected |
| Operating Frequency Range | 10-440Hz (3-phase) |
| Input / Output Opto Isolation | 4000V |
| Max. Off-State Voltage Rise (dV/dt) | 500V/µs |
| Minimum Load Current | 5mA RMS |
| Standards | IEC 60947-4-2 for motor control & IEC 60947-4-3 for other loads; CE marked |
| Dimensions | 100 x 76 mm, 56.5 mm height (SVT series) |
Ordering / Variants
DC control version: SVT864394 (control volt 8.5-30V DC, control current 10-45mA).
Typical Applications
Industrial heating and temperature control, motor control, capacitor control, transformer control, lamps control, solenoid control, air conditioning
